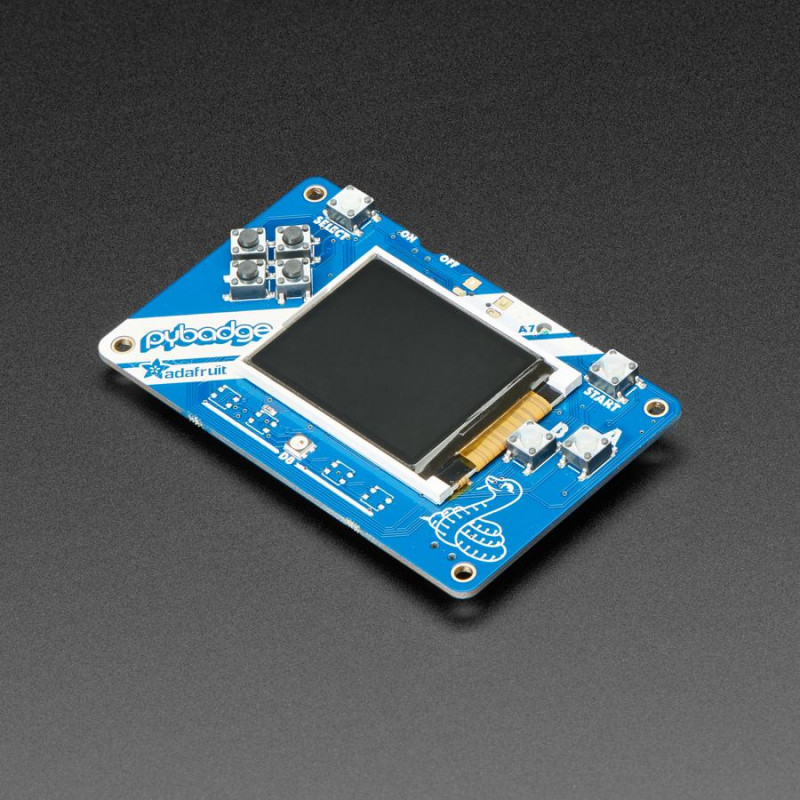

What's the size of a credit card and can run CircuitPython, MakeCode Arcade or Arduino even when you're on a budget? That's right, it's the Adafruit PyBadge LC!
Adafruit wanted to see how much we could cram into a ?3 3?8 × ?2 1?8 inch rounded rectangle, to make an all-in-one dev board with a lot of possibilities, and this is what they came up with.
The PyBadge is a compact board, like we said, it's credit card sized. It's powered by their favorite chip, the ATSAMD51, with 512KB of flash and 192KB of RAM. They add 2 MB of QSPI flash for file storage, handy for images, fonts, sounds, or game assets.
This is the Low Cost version of the more fully featured Adafruit PyBadge. They pared down the hardware to make it even more affordable, and you can still use it with MakeCode Arcade, CircuitPython or Arduino! The LC version has the same processor chip, QSPI Flash, on/off switch, buttons, buzzer, light sensor and battery circuit. It does not have Feather headers, JST STEMMA connectors, LIS3DH accelerometer, or optional speaker connection. Instead of 5 NeoPixels there is only one in the center front.
On the front you get a 1.8" 160x128 color TFT display with dimmable backlight - we have fast DMA support for drawing so updates are incredibly fast. There's also 8 silicone-top buttons, they are clicky but have a soft button top so they're nice and grippy. The buttons are arranged to mimic a gaming handheld, with a d-pad, 2 menu-select buttons and 2 fire-action buttons. There's also a NeoPixel LED in the front to dazzle or track activity.
For built in sensoring, there's a light sensor that points out the front. To make bleeps and bloops, there's a built in buzzer-speaker.
You can power the PyBadge from any of our LiPoly batteries. An on-off switch will save battery power when not in use. Or power from the Micro USB port - it will also charge up the battery if one is attached.
Now, how to program it? Well you've got a lot of options!
MakeCode Arcade is the easiest to start for making games, you can drag-and-drop blocks and load games over the disk-drive bootloader
CircuitPython lets you draw graphics, play wave files and print out text in any fonts - all in Python! There's tons of sensor support as well.
Arduino is low level, powerful, but a little more challenging. You can use Adafruit Arcada to interface with the hardware and it will abstract some of the nitty-gritty details like reading buttons for you.
Here's a list of everything you get
ATSAMD51J19 @ 120MHz with 3.3V logic/power - 512KB of FLASH + 192KB of RAM
2 MB of SPI Flash for storing images, sounds, animations, whatever!
1.8" 160x128 Color TFT Display connected to its own SPI port
8 x Game/Control Buttons with nice silicone button tops (these feel great)
1 x NeoPixel for badge dazzle
Light sensor, reverse-mount so that it points out the front
Built in buzzer mini-speaker
LiPoly battery port with built in recharging capability
USB port for battery charging, programming and debugging
Reset button
On-Off switch
TECHNICAL DETAILS
Product Dimensions: 85.7mm x 54.6mm x 10.0mm / 3.4" x 2.1" x 0.4"
Product Weight: 25.7g / 0.9oz
