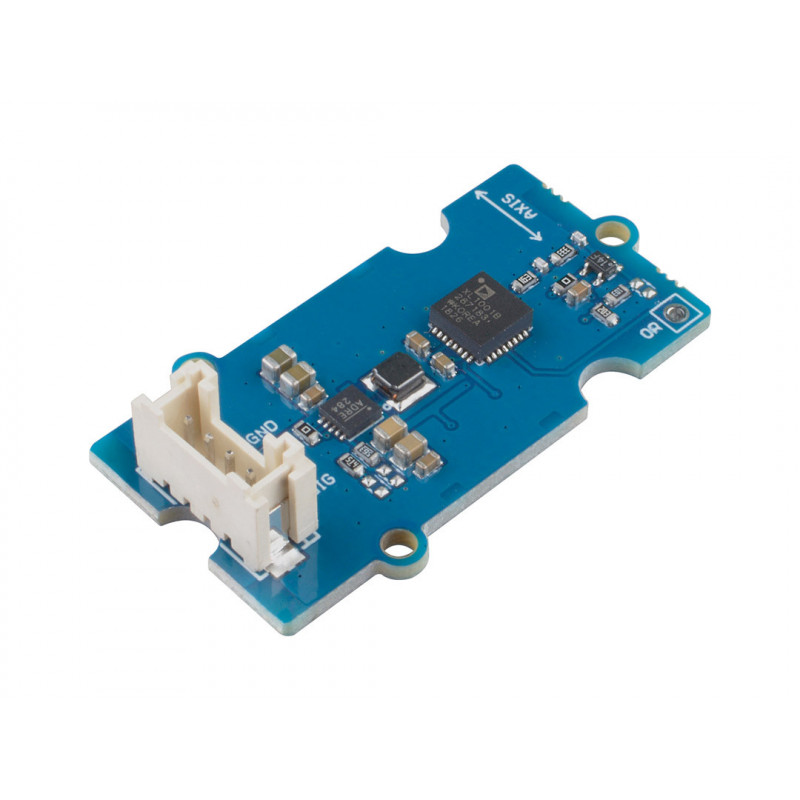

The Grove - Single Axis Analog Accelerometer ±100g (ADXL1001) is a ultralow noise, high frequency, high G, industrial grade MEMS accelerometers, which is based on ADI ADXL1001.
The ADXL1001 has typical noise densities of 30 ?g/?Hz and the linear frequency response range from dc to 11 kHz (3 dB point). Besides the ADXL1001 have an integrated full electrostatic self-test (ST) function and an overrange (OR) indicator that allows advanced system-level features and is useful for embedded applications.
With low power and single-supply operation of 3.3 V to 5.25 V and power saving selectable standby mode, the ADXL1001 also enables wireless sensing product design.
Click here to check more ADI ADXL series accelerometers.
Note
We've Released the Grove Selection Guide and hope to help you find the Grove suit you best.
Features
Single in plane axis accelerometer with analog output
Linear frequency response range from dc to 11 kHz (3 dB point), resonant frequency of 21 kHz
Ultralow noise density: 30 ?g/?Hz in ±100g range
Complete electromechanical self-test
Linearity to ±0.1% of full-scale range
Sensitivity stability over temperature 5%
Cross axis sensitivity ±1% (ZX), ±1% (YX)
Applications
Condition monitoring
Predictive maintenance
Asset health
Test and measurement
Health usage monitoring system (HUMS)
Hardware Overview
Figure 1. hardware overview
Figure 2. hardware overview back
