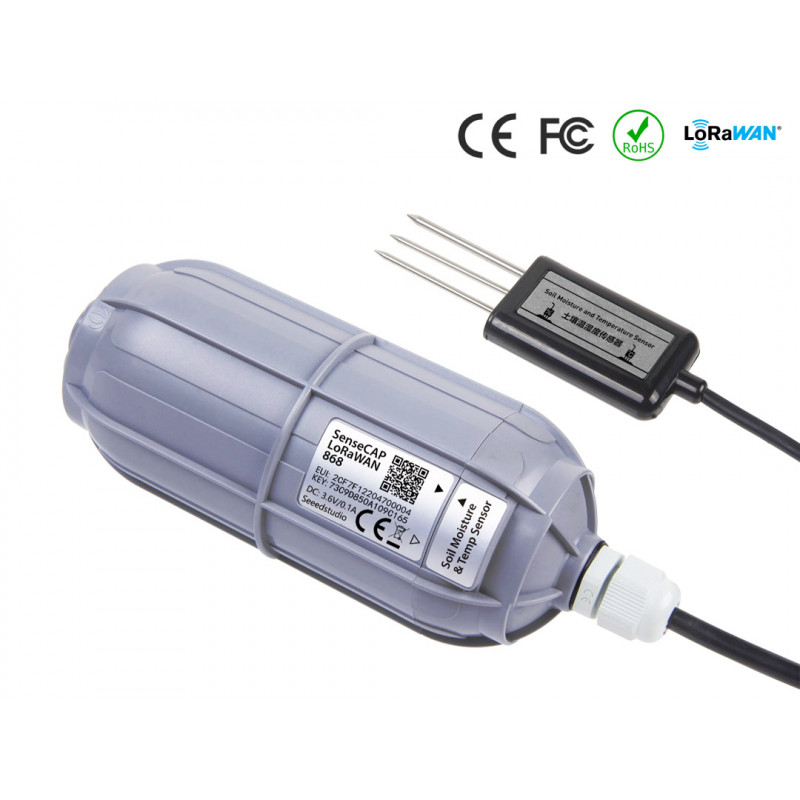

SenseCAP Wireless Soil Moisture & Temperature Sensor measures soil volumetric water content (VWC) and soil temperature at the range of 0 ~ 100% (m³/m³) and -30 ~ 70? respectively. With the high-quality soil moisture and temperature probe, this sensor features high precision and sensitivity regardless of soil variability, making it widely applicable in industrial IoT (IIoT) scenarios such as water-saving irrigation, outdoor fields, greenhouses, and more.
This device incorporates a built-in LoRa transmitter based on SX1276 for long-range transmission, a 2-in-1 sensor, and a custom battery. It is specifically designed and optimized for user cases powering end devices by batteries for years.To minimize the power consumption, the device wakes up, transmits the collected soil moisture and temperature data to the gateway, and then goes back to sleep.
Under the best of circumstances, the battery is expected to last for more than 6 years, depending on environmental factors and the data transmission intervals. Please kindly note that the default interval is once per hour. If you'd like to change the data upload interval, please refer to this document
To fit in adverse conditions, this wireless sensor is designed with industry standards and equipped with an IP66 waterproof enclosure, protecting the device from UV radiation, rain, and sunlight exposure.
The SenseCAP Sensor adopts a modular design, integrating the data logger with the sensor probe, which can be replaced by other SenseCAP sensor probes.
Note
SenseCAP Sensor is fully compliant with LoRaWAN specifications and can be used with standard LoRaWAN gateways. Please choose the corresponding gateway according to the sensor frequency.
Seeed also provides SenseCAP LoRaWAN Gateway for you to use with SenseCAP Sensors seamlessly without extra huge workload for provisioning.
System Architecture
SenseCAP Architecture
SenseCAP Sensor + Other LoRaWAN Gateway Architecture
Features
Support LoRaWAN protocol Class A
High reliability and stability
Ultra-wide-distance transmission: 10km in line of sight scene, 2 km in urban scenes
Battery life ? 6 years
IP66 enclosure, suitable for outdoor applications
Rapid installation and deployment (see the video below)
Applications
Smart Agriculture
Smart Building and Industrial Control
Environmental Monitoring
Other Wireless Sensing Applications
Specifications
Soil Temperature
Range -30 ? to +70 ?
Accuracy ±0.5 ?
Resolution 0.1 ?
Soil Moisture
Range From completely dry to fully saturated (from 0% to 100% of saturation)
Accuracy ±2% ( 0 to 50 %) ; ±3% ( 50 to 100 %)
Resolution 0.03 %(0 to 50%); 1%(50 to 100%)
General Parameters
Product Model LoRa-S-868-Soil MT-01
Microcontroller Ultra-low-power MCU
Support Protocol Based on LoRaWAN v1.0.2 protocol
LoRa Channel Plan EU868
LoRa Power Output 16 dBm (EIRP)
Sensitivity -137.5dBm(SF12, BW125KHz)
Current Consumption 5 ?A (sleep mode)
120 mA max(active mode)
Communication Distance 2 to 10 km (depending on different antennas and environments)
Measuring Area A cylinder area (with the probe as the center, diameter: 7cm, height: 7cm)
IP Rating IP66
UV Resistance anti-aging (from rain/sun exposure): UL746C F1
Enclosure Material PC
Operating Temperature -30 ? to +70 ?
Operating Humidity 0 to 100 %RH (non-condensing)
Device Weight 415g
Certification CE, FCC, RoHS
Battery (Contained in equipment)
Battery Life ? 3 year (upload data once per hour)
Battery Voltage 3.6V
Battery Capacity 19Ah (non-rechargeable)
LoRa Frequency
The device is designed with a fixed LoRa channel, which can not be modified by users. The supported channels are as follows. Please refer to this document for how to connect this device with a standard LoRaWAN gateway.
LoRa Channel Plan
Uplink (MHz) 868.1 - SF7BW125 to SF12BW125
868.3 - SF7BW125 to SF12BW125 and SF7BW250
868.5 - SF7BW125 to SF12BW125
867.1 - SF7BW125 to SF12BW125
867.3 - SF7BW125 to SF12BW125
867.5 - SF7BW125 to SF12BW125
867.7 - SF7BW125 to SF12BW125
867.9 - SF7BW125 to SF12BW125
Downlink (MHz) Uplink channels 1-8 (RX1)
869.525 - SF9BW125 (RX2 downlink only)
Part List
Part List
1 Sensor x1
2 Bracket x1
3 M4 Self-drilling Screw x4
4 M3 Self-drilling Screw x2
