Features
Average gain dBi: 7dBi
Frequency range: 900-930MHz
Length of 92cm
Robust enough to withstand the harsh outdoor environment
Can connect to the SenseCAP Outdoor Gateway and SenseCAP M1 Indoor Gateway
Includes hardware for mounting
Comes with a 1m cable

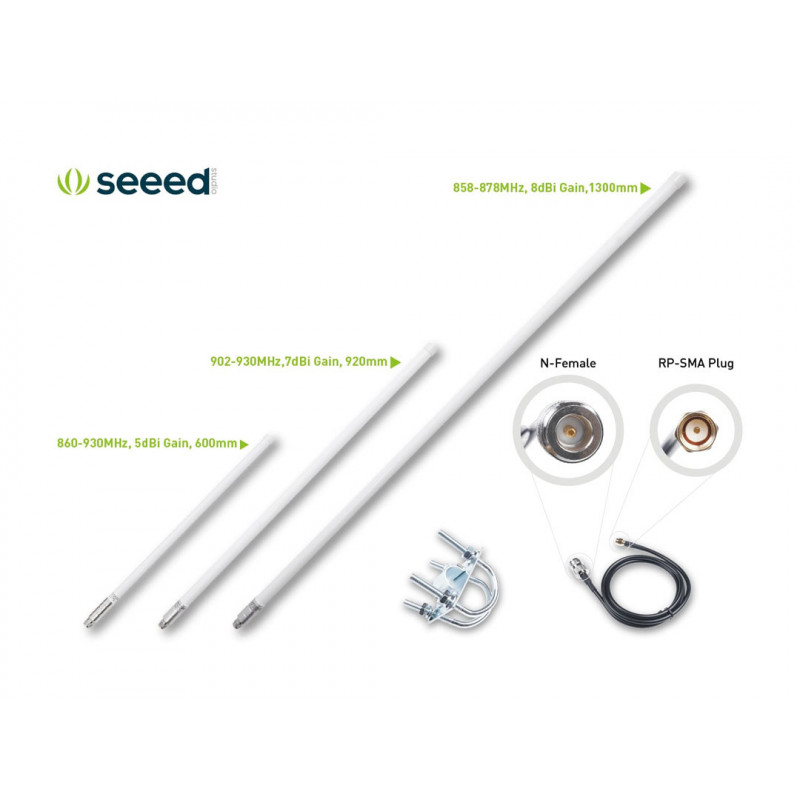

For some applications like in an urban environment or where large stretches of land have to be monitored the normal range of LoRa might not be enough. If you need to increase the range for your LoRa devices, then this outdoor LoRa Fiberglass antenna will be the ideal addition to your LoRa system. It?s a robust solution to provide extra power and range for outdoor LoRa Base stations. The antenna has an average gain of 7dBi, a length of 92cm, and a frequency range from 902-930MHz and it comes with hardware for pole and wall mounting.
The Antenna has an N-J Double tooth connector, and it comes with an N-Female to RP-SMA plug cable so it can be easily connected to the SenseCAP Gateways.
Application
The antenna can be used in any environment where long-range LoRa connections are required.
Agriculture
Environmental Monitoring
Urban Monitoring
Parameters
Frequency
900-930MHz
Antenna Gain
7.0 +/-0.8dBi
Efficiency
>=60%
Radiation Pattern
Omni-Directional
Max Input Power
>=2W
Polarization
Linear polarization/ Vertical
Impedance
50 Ohm
Material of Radiator
CU
Material of Plastic
FRP (white light)
Cable Type
RG-141 50Ohm
Connector Type
N-J Double tooth connector
Operation Temperature
-30°C ~65°C
Storage Temperature
-30°C~65°C
Antenna Color Storage life
< 2 year
Cable length
1m
