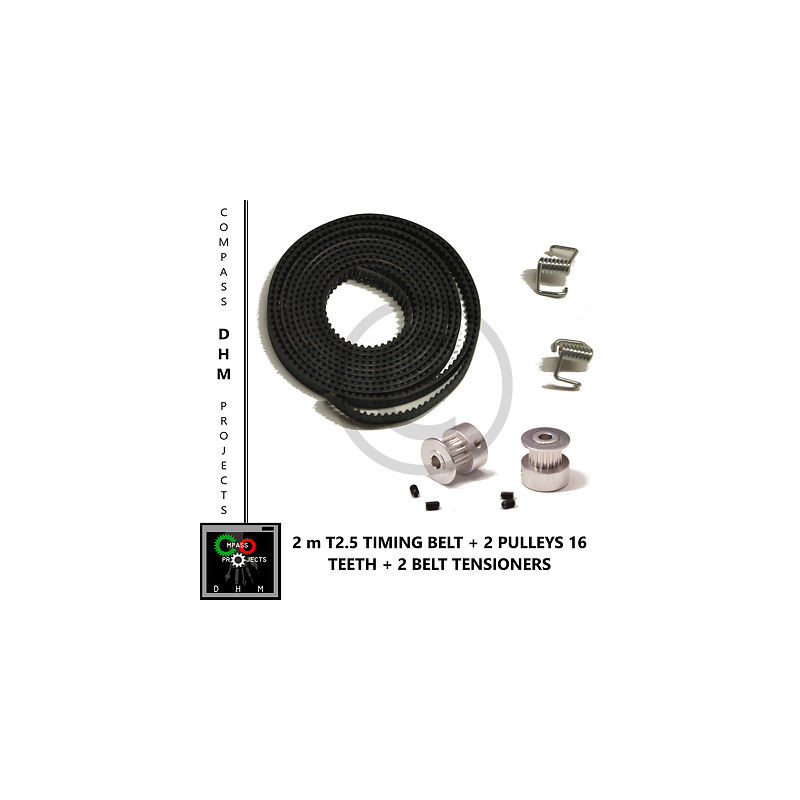

2 meters belt with pitch T2.5 in neoprene + 2 pulleys T2.5 16 teeth + 2 belt tensioners
for 3d printers such as Prusa, Mendel or CNC machines
T2.5 BELT FEATURES:
To be used with T2.5 pulleys to achieve excellent power transmission.
Characterized by high load capacity and efficiency, wear resistant in continuous operation,
accuracy in positioning repeatability in linear system, pitch accuracy in translation of rotational to linear motion.
Suitable for stepper driver motors, resistant to water, ozone and sunlight, as well as gasoline, grease and simple oils.
Internally reinforced with nylon.
Features:
-
Pitch: 2.5 mm
- Belt height: 1,3 mm
- Teeth height: 0,7 mm
- Strap width: 6 mm
- Material: neoprene
PULLEYS T2.5 16 TEETH:
These pulleys are suitable for a T2.5 belt, whether it is nylon reinforced neoprene or steel reinforced polyurethane.
Our T2.5 pulleys are made of aluminum, the width of the teeth is 7 mm, the diameter of the internal hole is 5 mm and they are characterized by double flange.
For an excellent performance ideally you should always have at least 6 teeth in contact with the belt, having 16 teeth these pulleys give
an excellent reduction of kickback, maintaining a high torque and a high printing resolution.
They are to be used with M3x4 steel headless screws (grains) included in the package.
Package contains:
-
- 2m x neoprene belt T2.5
- 2 x T2.5 16 teeth pulleys
- 2 x belt tensioner
