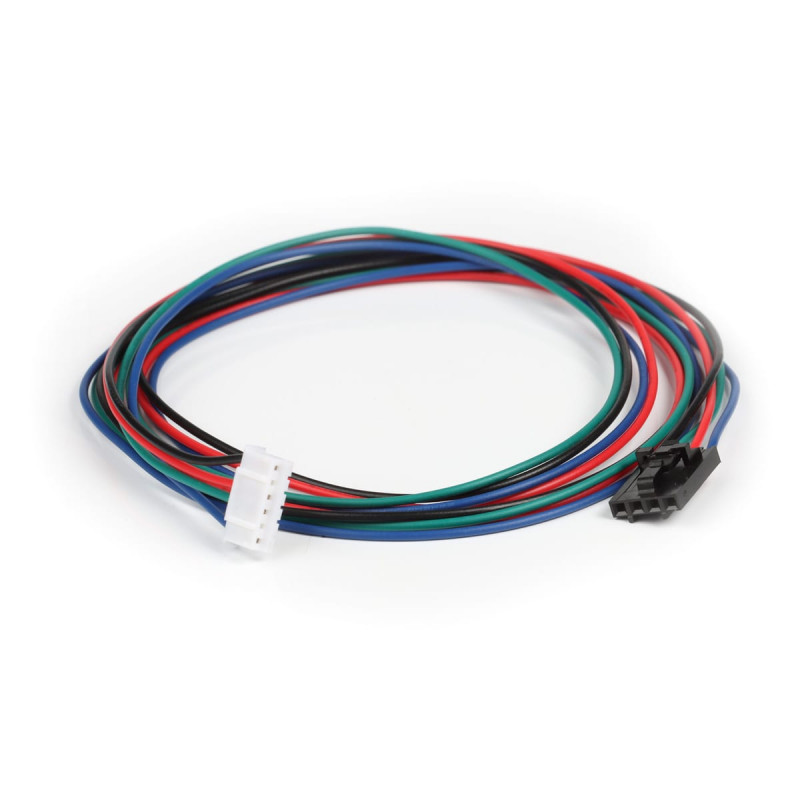

The cable length is 700 mm, 4-pin Dupont cable connector with locking function to 6-pin JST-XH6 connector.
This cable is wired by default for the Nema17 motor with 40 mm gears.
The specified wiring of this cable is shown below:
Controller Side Motor Side
PIN 1 ----------------- PIN 1 PIN
2 ----------------- PIN 4 PIN
3
----------------- PIN 4 ----------------- PIN 6
If this cable will be used with the 25mm Pancake motor, the location of the two center wires must be swapped to have a proper connection.
Controller Side Motor Side
PIN 1 ----------------- PIN
2 ----------------- PIN
3 ----------------- PIN 4 PIN
4 ----------------- PIN 6
