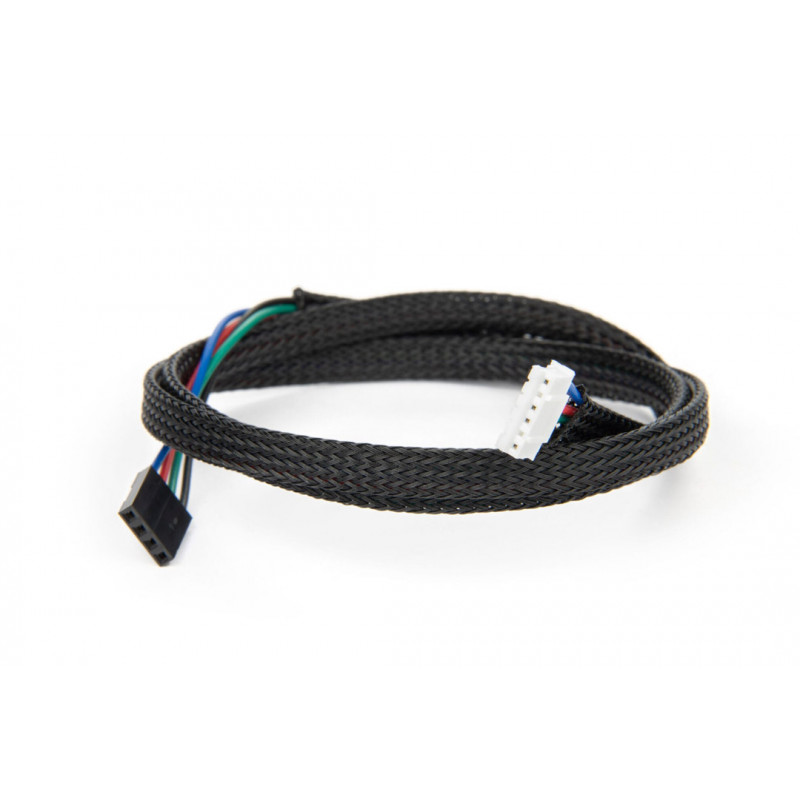

70 cm stepper motor cables with 6-pin JST-XH6 connector to connect Bondtech stepper motors.
Available in 3 variations of cable interfaces for connection to controllers or other stepper motor cables.
JST-XH6 TO JST-PH6 EXTENSION CABLE
Stepper motor side
PIN 1 ? A PIN
2
PIN 3 ? B
PIN 4?
C
PIN 5
PIN 6?
D
Controller side
PIN 1?
B
PIN 2
PIN 3?
C
PIN 4?
A
PIN 5
PIN 6?
D
This configuration acts as an extension cable and allows you to connect the 25 mm Nema17 Pancake Stepper motors to the Creality stepper motor wires.
For different applications you may need to swap some wires. Make sure it follows the schematics for your application.
STEPPING MOTOR CABLE WITH JST-XH6 TO PC2510
SIDE stepper motor
PIN 1 ? A PIN
2
PIN 3 ? B
PIN 4?
C
PIN 5
PIN 6?
D
Controller side
PIN 1?
D
PIN 2?
C
PIN 3 ? B
PIN 4 ? A
This is a stepper motor cable.
To connect Nema17 40mm stepper motors the 2 wires in the middle must be swapped. For different applications you may need to keep or swap some wires. Make sure it follows the schematics for your application.
STEPPING MOTOR CABLE WITH JST-XH6 TO DUPONT NO LOCK
STEPPING MOTOR SIDE
PIN 1 ? A PIN
2
PIN 3 ? B
PIN 4 ? C
PIN 5
PIN 6?
D
Controller side
PIN 1?
A
PIN 2 ? B
PIN 3?
C
PIN 4 ? D
This is a stepper motor cable.
To connect Nema17 40mm stepper motors the 2 wires in the middle must be swapped. For different applications you may need to store or swap some wires. Make sure it follows the schematics for your application.
