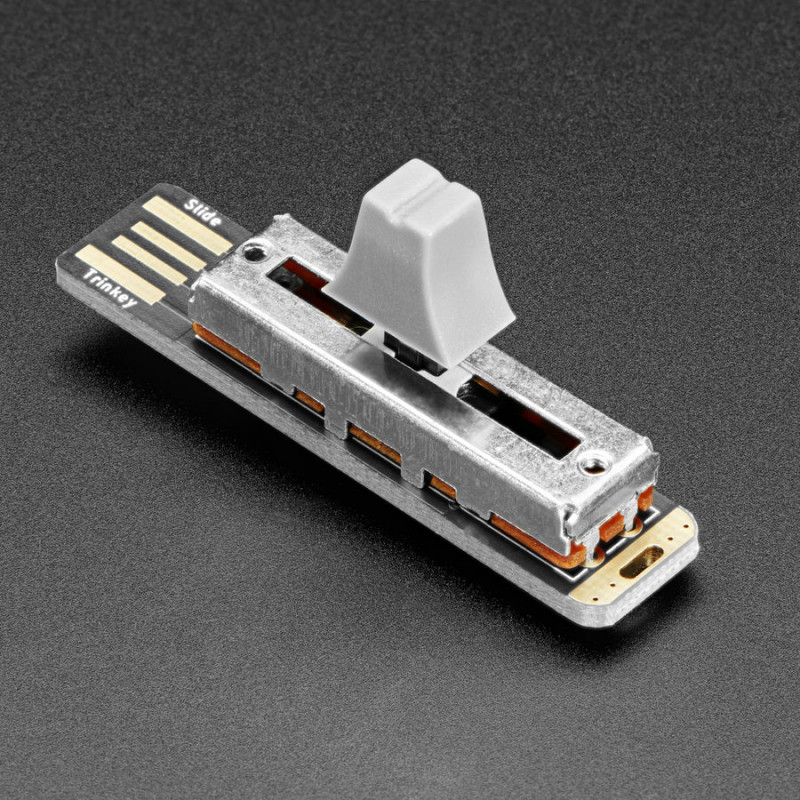

It's half USB Key, half Adafruit Trinket, half mini slide pot... it's Slider Trinkey, the circuit board with a Trinket M0 heart, NeoPixel glow, and a 35mm long 10K? slide potentiometer.
The PCB is designed to slip into any USB A port on a computer or laptop. There's an ATSAMD21 microcontroller on board with just enough circuitry to keep it happy. One pin of the microcontroller connects to the middle of the slide potentiometer as an analog input. Another connects to two NeoPixel LEDs. The third pin can be used as a capacitive touch input. A reset button lets you enter bootloader mode if necessary. That's it!
The SAMD21 can run CircuitPython or Arduino very nicely - with existing NeoPixel and Adafruit's FreeTouch libraries for the capacitive touch input. Over the USB connection, you can have serial, MIDI, or HID connectivity. The Slider Trinkey is perfect for simple projects that can use a few user inputs and colorful output. Maybe you'll set it up as a monitor brightness adjuster, or volume control, or color picker.
Please note this board DOES come with a pre-soldered slide pot (there's really only one that fits and Adafruit happen to stock it) Since it uses a PCB with a USB A shape, its possible to accidentally yank the board out if you push the potentiometer all the way out and then keep pushing it out. So be kind and careful with your Slider Trinkey! It isnt meant for yanking.
We think it's just an adorable little board, small and durable and inexpensive enough that it could be a first microcontroller board, or inspiration for advanced developers to make something simple and fun.
ATSAMD21E18 32-bit Cortex M0+ - 48 MHz 32 bit processor with 256KB Flash and 32 KB RAM
Native USB supported by every OS - can be used in Arduino or CircuitPython as USB serial console, MIDI, Keyboard/Mouse HID, even a little disk drive for storing Python scripts.
Can be used with Arduino IDE or CircuitPython
Two reverse-mount RGB NeoPixel LEDs
One Capacitive Touchpad
One 35mm slide potentiometer with nubbin
Reset switch for starting your project code over or entering bootloader mode
Cute & keychain-friendly!
TECHNICAL DETAILS
Product Dimensions: 52.0mm x 24.5mm x 12.0mm / 2.0" x 1.0" x 0.5"
Product Weight: 6.4g / 0.2oz
