EN AW 5083 10mm-thick ground aluminum top - printing surface for Voron 2.4 and Voron Trident Aluminum 1805040-a DHM Pro

Add to Compare

Product Sheet

Please login to Download PDF

Add to Project

EN AW 5083 10mm-thick ground aluminum top - printing surface for Voron 2.4 and Voron Trident

Reference: 18050405

€81.00

VAT included Shipping excluded

Price from €81.00

Immediate Availability

Dispatch in 24/48H

Product Details
Brand DHM Pro
Reference 18050405
-- Stocks: Immediate Availability *

*Regular shipments throughout the country
Description

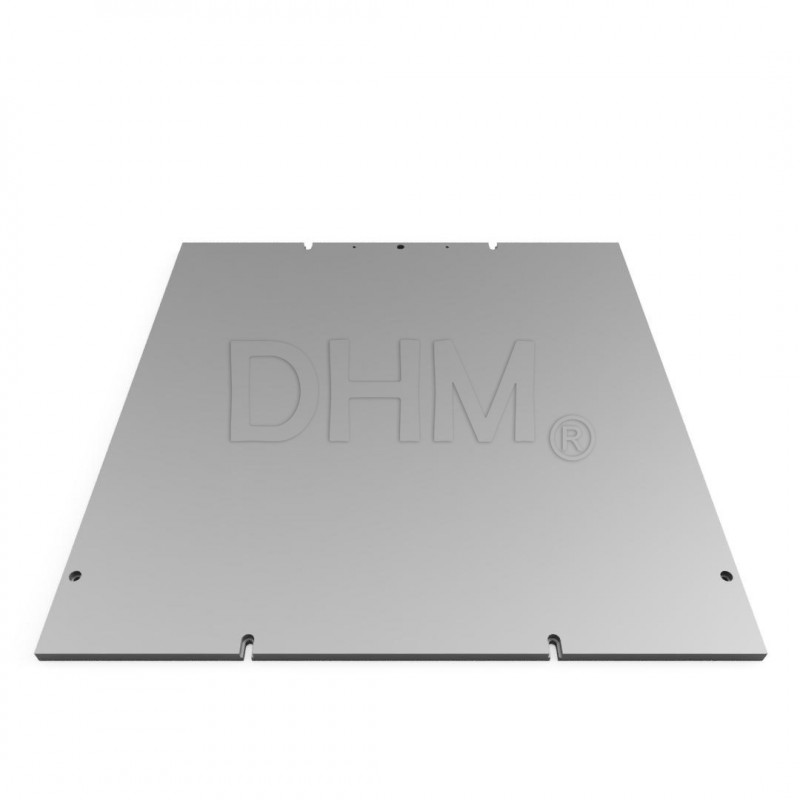

Printing plate machined from aluminum alloy 5083 plates, ground on both faces 10mm thick - milled to size: 255X255 / 305X305 / 355X355 - measurements expressed in millimeters (mm)

CNC ground and milled cast aluminum plate. The design is specially designed for the 3D printers Voron. In particular, it has 4 slotted slots for attachment in the Voron 2.4, and 3 recessed holes for the Voron Trident .

We have revisited the dimensions and tolerances of the holes and slots for a ?sturdier? installation that sees the use of low-slotted M4 screws instead of the M3 screws in the original design. Compatibility with the two official Voron models is maintained at 100%.

The underside has two M4x0.7 threaded holes for grounding and for attaching the temperature fuse. Again, we preferred an increased threading compared to the original M3.

The top comes ready to install.

Please note that the protective film must be removed before it can be used.

A lead time of 48h-72h is expected for stock material.
Read more
PHYSICAL PROPERTIES
specific gravity: 2.66 g/cm3
modulus of elasticity: 71000 MPa
thermal conductivity: 105-120 W/m K
electrical conductivity (T=20°C): 15-17*106 S/m
coefficient of linear thermal expansion (20°-100°C): 23.8*10-6 K-1

FLATNESS AND ROUGHNESS TOLERANCES
Thickness [mm]: +/- 0.1
Flatness [mm/m]: 0.40
Roughness [µm]: 70

For other information please contact us.

The item you receive may differ in some features from the one shown in the photo, depending on the production batch. Despite this, the functionality is maintained.
