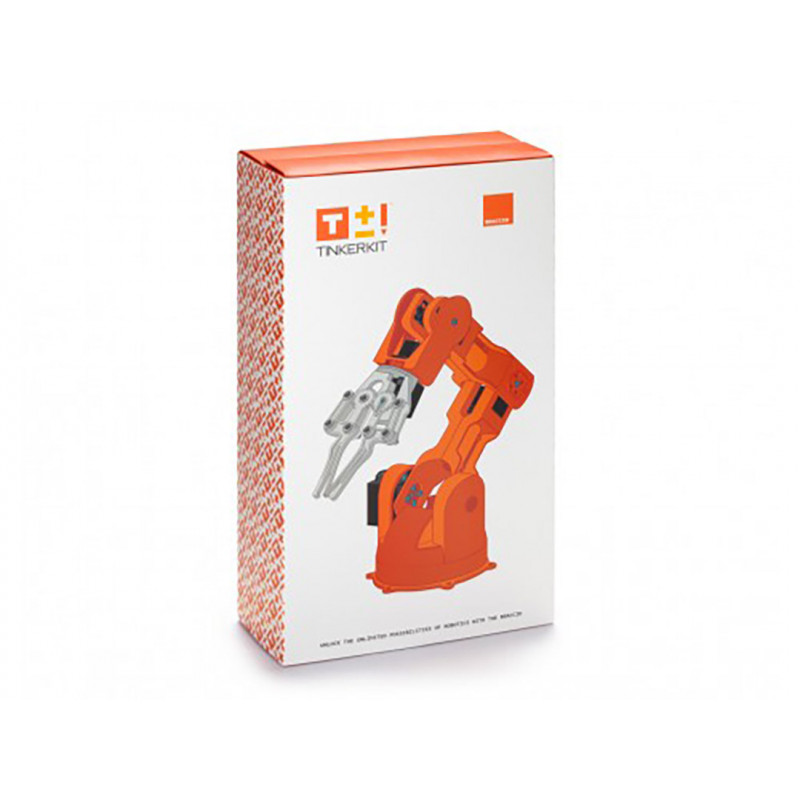

TINKERKIT ARM ROBOT is a fully operational robotic arm, controlled via Arduino. It can be assembled in different ways for multiple tasks such as moving objects, you can also connect a camera or solar panel. There are many ways the robotic arm can extend the reach of your devices.
Power: We recommend powering the board via the jack connection with a regulated 5 VDC @ 5000 mA power supply provided in the box.
There is a voltage regulator for higher voltages that protects the screen of the robotic arm.
NOTE: the protection will not work for Arduino Yún Rev 2 if you bridge between Vin and 5V on the Arm Robot Shield V1 (larger versions are called Arm Shield and has a power switch on top of the board)
Physical features:
Plastic parts x 21
Screws x 63
Flat washer x 16
Hex nut x 7
Springs x 2
Servomotors: 2 x SR 311, 4 x SR 431
Arduino compatible Shield x 1
5V, 5A power supply x 1
Phillips screwdriver x 1
Spiral cable protector x 1
Fully assembled Arm Kit:
Weight: 792 g
Maximum operating distance: 80 cm
Maximum height: 52 cm
Base width: 14 cm
Clamp width: 90 mm
Cable length: 40 cm
Load capacity: Maximum weight at 32 cm operating distance: 150 g / Maximum weight in minimum Arm configuration: 400g
Shield Arm: The maximum length and width of the Shield Arm PCB are 2.7 and 2.1 inches respectively, with the power jack extending beyond the previous dimension. Four screw holes allow the board to be secured to a surface with a case. Note that the spacing between digital pins 7 and 8 is 160 mil (0.16 "), not an even multiple of the 100 mil spacing of the other pins.
