Ball screw SFU2010 - 100 cm Ball screws 05070702 DHM

Add to Compare

Product Sheet

Please login to Download PDF

Add to Project

Info! You can also add a product to your project that is not available for purchase.

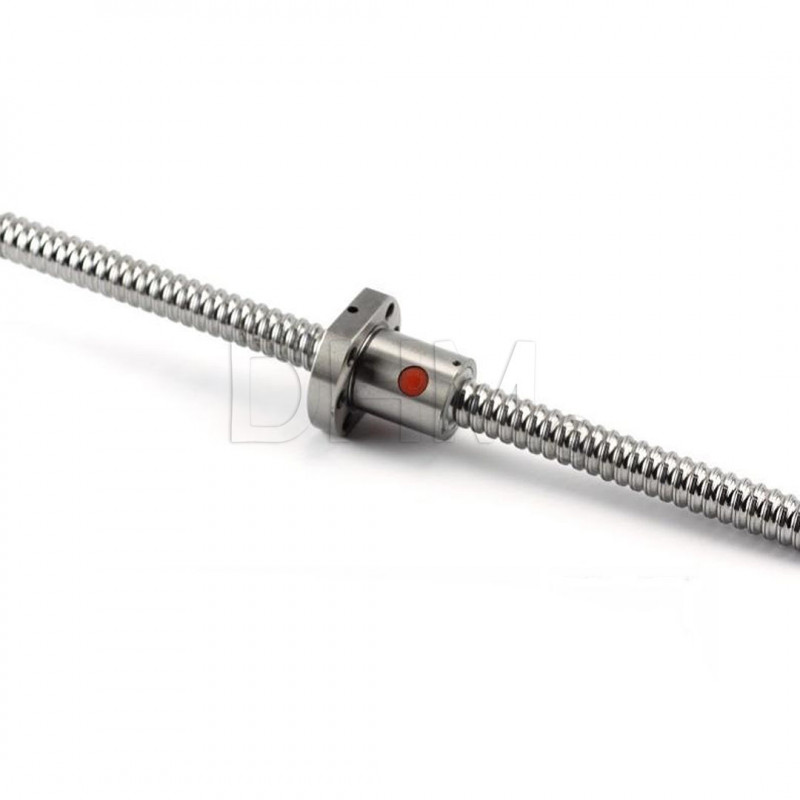

Ball screw SFU2010 - 100 cm

Name: Ball screw SFU2010 - 100 cm
Brand: DHM
SKU: 05070702
Price: 115 EUR
Availability: PreOrder

Reference: 05070702

€115.00

VAT included Shipping excluded

Pre-order Now

Delivery times indicated in stock details

Product Details
Brand DHM
Reference 05070702
-- Stocks: Immediate Availability *

*Regular shipments throughout Europe
Description

The package contains: 1 x Ball screw

Recirculating ball, also known as recirculating ball and nut or worm and sector, is a steering mechanism. The recirculating ball steering mechanism contains a worm gear inside a block with a threaded hole in it; this block has gear teeth cut into the outside to engage the sector shaft (also called a sector gear) which moves the Pitman arm. The steering wheel connects to a shaft, which rotates the worm gear inside of the block. Instead of twisting further into the block, the worm gear is fixed so that when it rotates, it moves the block, which transmits the motion through the gear to the Pitman arm, causing the roadwheels to turn.
Care must be taken when inserting the nut into the screw (to be carried out in case of failure) since a wrong maneuver may cause the balls to spill out or damage to the recirculation components.

The item you receive may differ for certain features from the one shown in the photo, depending on the production lot. However, the functionality is maintained. The description of this item has been automatically translated. If you have any questions, please feel free to contact us.
Read more
For more information please contact us.

The item you will receive may differ in some features from the one represented in the photo, depending on the production batch. Despite this, the functionality is maintained.

Questions(FAQs)

Hello, I would like to know what precision these screws have.

The precision grade of the ball screws found in this category is C5.

One would need to know the advance ratios ( one turn =?) in order to choose the right one.

Each screw has a descriptive name, e.g. SFU1204: The first three letters identify the type of nut-screw and its bushing to match, the first two digits the diameter the last two the pitch, and then from these then the relative advance for each model is derived. Here is a summary table:

12mm diameter	16mm diameter
1204--> 4mm pitch	1604--> 4mm pitch
1205--> 5mm pitch	1605--> 5mm pitch
	1610--> 10mm pitch

Diameter 20mm	25mm diameter
2004--> 4mm pitch	2504--> 4mm pitch
2005--> 5mm pitch	2505--> 5mm pitch
	2510--> pitch 10mm

Since these leadscrews are single-principle, the pitch corresponds to the feed. So to know the linear feed at each turn of the screw you have to refer to the pitch itself of each individual model. For example with a 4mm pitch--> 4mm linear feed.

buongiorno la vite sfu2010 é completa anche di chiocciola? grazie

Il codice articolo 05070702 include solamente la madrevite da abbinare alla chiocciola con codice articolo 05070106
