High-flow nickel-plated nozzle: the CHT BiMetal RepRap M6 Coated nozzle from Bondtech is a hardened copper and vanadium steel nozzle with nickel plating, ideal for high-flow applications and abrasive materials.
The use of this nozzle increases maximum volumetric flow by 50%.
Main features of the coated nozzle Bondtech CHT BiMetal RepRap M6:
- Copper body
- Hardened vanadium steel inserts
- Nickel coating
- 1 unit per package
- Available sizes: 0.40, 0.60, 0.80 and 1.0 mm
- Optimized for 1.75 mm filament
- Compatible with 2.85 mm filament
- Requires a 6 mm wrench
Advantages of the coated nozzle Bondtech CHT BiMetal RepRap M6:
- Abrasive-proof for working with carbon fiber and glass fiber composite materials
- Increased melting capacity due to increased heating wall surface area

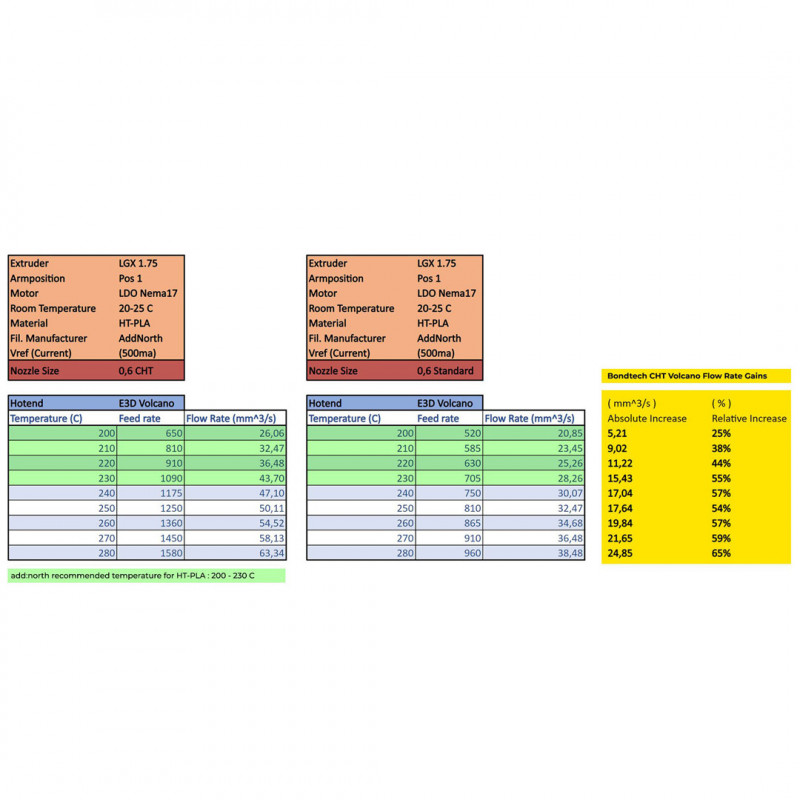

- Increased flow rate between 25 and 65 percent
- Machined with ultra-precision
- Copper body and nozzle with hardened vanadium steel inserts with nickel-coated surface
- Follows the RepRap M6 nozzle standard (M6×1×7.5×12.5)
- Can be used with hotend 1.75mm or 2.85mm
The Bondtech RepRap M6 nozzle is compatible with:
- Mosquito / Magnum
- Mosquito Liquid
- Mosquito Magnum+
- Copperhead
- E3D Chimera and Kraken
- E3D V4, V5 and V6 blocks
- Prusa i3, Prusa Mini
- RepRap M6
Notes:
- For abrasive filaments (carbon and fiberglass), nozzles with a diameter of 0.6, 0.8 and 1.0 mm should be used.
- For filaments loaded with particles such as metal, wood, glitter, the 0.4 mm nozzle is suitable.
- The flow rate may vary depending on the material and print settings and is compatible with 1.75 and 2.85 mm filaments.
- The supplied nozzles are nickel coated, so they have a gray color.
CAUTION.
- Do not replace CHT nozzles when cold. Heat the block to 280°C, or at least above 250°C, before removing or tightening any Bondtech CHT nozzle. Use a maximum tightening torque of 1.0 Nm (recommended 0.5 Nm).
- For abrasive filaments loaded with carbon or glass fibers, use only 0.6, 0.8 and 1.0 mm nozzles.
Package contains: 1 x CHT BiMetal RepRap M6 Coated Nozzle -. Bondtech
The size provided depends on the selection at the time of order, can be: 0.40, 0.60, 0.80 or 1.0 mm
