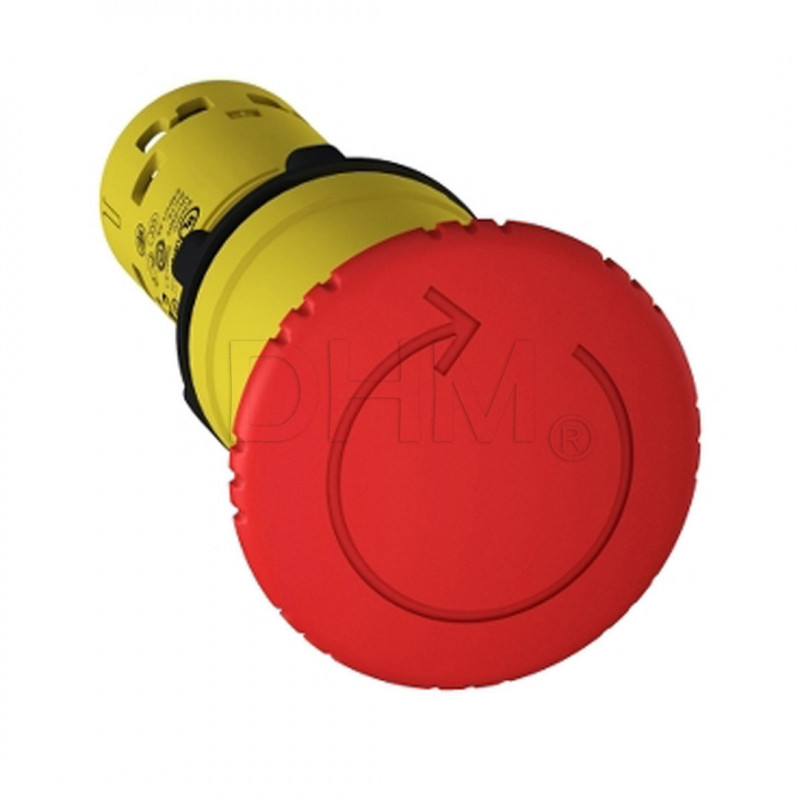

Schneider Electric 's red Harmony XB7 mushroom-head emergency stop monolithic button measures 40 mm, operates with a "turn to unlock " locking mechanism, and uses screw terminals. It features 2 NC contacts and a plastic ferrule. This emergency stop/shutdown button, also called EMS (Emergency Machine Stop- Emergency Machine Stop) and EMO (Emergency Off- Emergency Shutdown) single component, can be easily installed in a standard 22 mm diameter hole and is connectable with simple screw connections. It is clearly visually distinguishable from a distance due to its bright color and obvious mushroom shape. With its IP65 rating, it is resistant to shock and vibration and is protected against dust and liquid ingress.
- Plastic and monolithic ferrule
- Designed to fit into a standard 22 mm hole to ensure compatibility in pre-existing machinery
- Wide operating temperature range of -25°C to 70°C ensures versatility of use of the IP65 product
- Environmentally friendly product performance
Package contains: 1 x Emergency pushbutton Ø22 - red - mushroom head Ø40 - unlock rotaz. - 1 NO+1 NC
- Read more
Presentation
- Product Range: Harmony XB7
- Product Type: Emergency stop button
- Device name: XB7
- Mounting diameter: 22 mm
- Head shape: Circular
- Operator type: mechanical latch
- Reset: Turn to unlock
- Operator type: red mushroom Ø 40, unmarked
- Contact composition and type: 1 NO + 1 NC
- Connections - terminals: Screw-fixing terminals, <= 2 x 1.5 mm² with cable end complying with IEC 60947-1 / Screw-fixing terminals, 1 x 0.34...2 x 2.5 mm² without cable end complying with IEC 60947-1
- Device presentation: one-piece product
Technical characteristics.
- Total width CAD: 40 mm
- Total height CAD: 40 mm
- Total depth CAD: 72 mm
- Description ISO terminals No. 1: (13-14)NO / (21-22)NC
- Net weight: 0.035kg
- Mounting device: Mounting hole - diameter: 22.5 mm 22.3 +0.4/0 according to IEC 60947-1
- Fixing spacing: >= 30 x 40 mm (carrier panel) Metal - thickness: 1...6 mm / >= 30 x 40 mm (carrier panel) Plastic - thickness: 2...6 mm
- Fastening type: Under-head fastening nut: 2...2.4 Nm
- Contact operation: Snap
- Contact usage: Standard
- Positive opening: With in accordance with IEC 60947-5-1 appendix K
- Mechanical life: 100000 cycles
- Tightening torque: 0.8 to 1.2 Nm complying with IEC 60947-1
- Head shape (screw): Cross head compatible with JIS NO 1 screwdriver / Cross head compatible with Philips No 1 screwdriver / Cross head compatible with pozidriv No 1 screwdriver / Slotted compatible with Ø 4 mm screwdriver plate / Slotted compatible with Ø 5.5 mm screwdriver plate
- Short-circuit protection: 4 A cartridge fuse type gG complying with IEC 60947-5-1
- Rated insulation voltage [Ui]: 250 V (pollution degree 3) complying with IEC 60947-1
- Rated impulse withstand voltage [Uimp]: 4 kV complying with IEC 60947-1
- Rated use current [Ie]: 0.1 A at 250 V, DC-13, R300 complying with IEC 60947-5-1 / 0.22 A at 125 V, DC-13, R300 complying with IEC 60947-5-1 / 0.75 A at 240 V, AC-15, C300 complying with IEC 60947-5-1 / 1.5 A at 120 V, AC-15, C300 complying with IEC 60947-5-1
- Electrical life: 1000000 cycles, DC-13, 0.3 A at 24 V, operating range <216000 cycles/m, load factor: 0.5 complies with IEC 60947-5-1 appendix C / 1000000 cycles, AC-15, 0.03 A at 230 V, operating range <216000 cycles/m, load factor: 0.5 complying with IEC 60947-5-1 appendix C / 1000000 cycles, AC-15, 0.09 A at 240 V, operating range <108000 cycles/m, load factor: 0.5 complying with IEC 60947-5-1 appendix C
- Electrical reliability: Λ < 5 x 10exp(-7) at 17 V and 5 mA complying with IEC 60947-5-4
Environment
- Protective treatment: TH
- Storage temperature: -40...70 °C
- Ambient temperature: -25...70 °C
- Protection class against electrical discharge: Class II in accordance with IEC 60536
- IP degree of protection: IP20 complying with IEC 60529 (back side) / IP65 complying with IEC 60529 (front side)
- Degree of protection NEMA: NEMA 12 complying with UL 50 / NEMA 3 complying with UL 50
- Reference Standards: IEC 60947-5-5 / UL 508 / IEC 60947-1 / IEC 60947-5-1 / CSA C22.2 No 14 / IEC 60364-5-53 / IEC 60204-1 / ISO 13850
- Product Certifications: GOST / CCC
- Vibration resistance: 5 gn (F= 2...500 Hz) in accordance with IEC 60068-2-6
- Shock resistance: 15 gn (duration = 11 ms) for half-sine wave acceleration complies with IEC 60068-2-27
For more information, please contact us.
The item you receive may differ in some features from the one shown in the photo, depending on the production batch. Despite this, the functionality is maintained. - Questions(FAQs)
