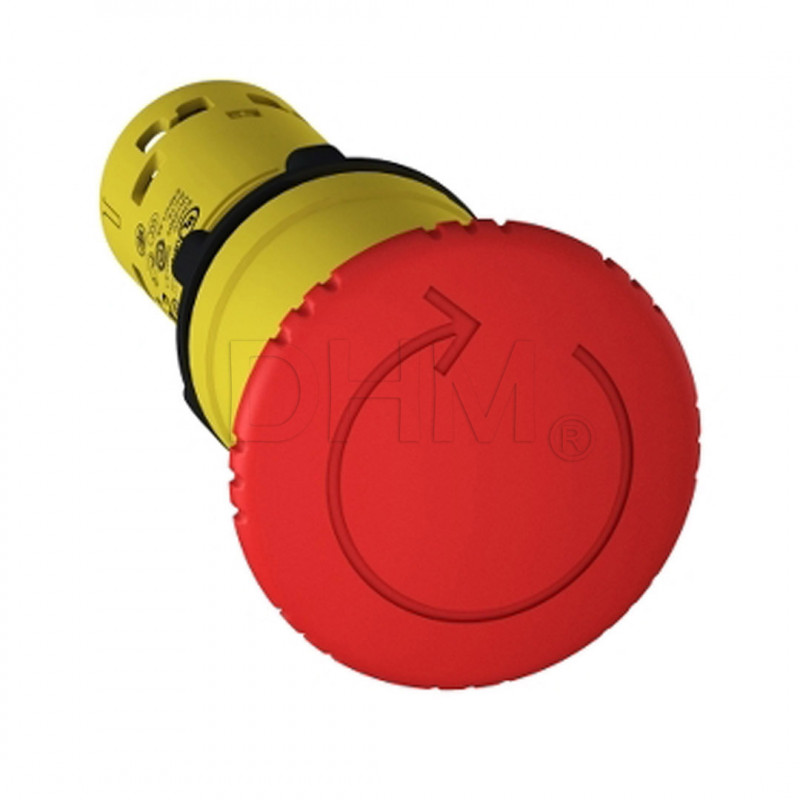

Emergency pushbutton Ø22 - red - mushroom head Ø40 - release rotaz. - 2 NC Schneider Electric

Presentation

• Product Range: Harmony XB7
• Product Type: Emergency stop button
• Device name: XB7
• Mounting diameter: 22 mm
• Head shape: Circular
• Operator type: mechanical latch
• Reset: Turn to unlock
• Operator type: Red mushroom Ø 40, unmarked
• Contact composition and type: 2 NC
• Connections - terminals: Screw-fixing terminals, <= 2 x 1.5 mm² with cable end complying with IEC 60947-1 / Screw-fixing terminals, 1 x 0.34...2 x 2.5 mm² without cable end complying with IEC 60947-1
• Device presentation: one-piece product

Technical characteristics.

• Total width CAD: 40 mm
• Total height CAD: 40 mm
• Total depth CAD: 72 mm
• Description ISO terminals No. 1: (13-14)NO / (21-22)NC
• Net weight: 0.035kg
• Mounting device: Mounting hole - diameter: 22.5 mm 22.3 +0.4/0 according to IEC 60947-1
• Fixing spacing: >= 30 x 40 mm (carrier panel) Metal - thickness: 1...6 mm / >= 30 x 40 mm (carrier panel) Plastic - thickness: 2...6 mm
• Fastening type: Under-head fastening nut: 2...2.4 Nm
• Contact operation: Snap
• Contact usage: Standard
• Positive opening: With in accordance with IEC 60947-5-1 appendix K
• Mechanical life: 100000 cycles
• Tightening torque: 0.8 to 1.2 Nm complying with IEC 60947-1
• Head shape (screw): Cross head compatible with JIS NO 1 screwdriver / Cross head compatible with Philips No 1 screwdriver / Cross head compatible with pozidriv No 1 screwdriver / Slotted compatible with Ø 4 mm screwdriver plate / Slotted compatible with Ø 5.5 mm screwdriver plate
• Short-circuit protection: 4 A cartridge fuse type gG complying with IEC 60947-5-1
• Rated insulation voltage [Ui]: 250 V (pollution degree 3) complying with IEC 60947-1
• Rated impulse withstand voltage [Uimp]: 4 kV complying with IEC 60947-1
• Rated use current [Ie]: 0.1 A at 250 V, DC-13, R300 complying with IEC 60947-5-1 / 0.22 A at 125 V, DC-13, R300 complying with IEC 60947-5-1 / 0.75 A at 240 V, AC-15, C300 complying with IEC 60947-5-1 / 1.5 A at 120 V, AC-15, C300 complying with IEC 60947-5-1
• Electrical life: 1000000 cycles, DC-13, 0.3 A at 24 V, operating range <216000 cycles/m, load factor: 0.5 complies with IEC 60947-5-1 appendix C / 1000000 cycles, AC-15, 0.03 A at 230 V, operating range <216000 cycles/m, load factor: 0.5 complying with IEC 60947-5-1 appendix C / 1000000 cycles, AC-15, 0.09 A at 240 V, operating range <108000 cycles/m, load factor: 0.5 complying with IEC 60947-5-1 appendix C
• Electrical reliability: Λ < 5 x 10exp(-7) at 17 V and 5 mA complies with IEC 60947-5-4

Environment

• Protective treatment: TH
• Storage temperature: -40...70 °C
• Ambient temperature: -25...70 °C
• Protection class against electrical discharge: Class II in accordance with IEC 60536
• IP degree of protection: IP20 complying with IEC 60529 (back side) / IP65 complying with IEC 60529 (front side)
• Degree of protection NEMA: NEMA 12 complying with UL 50 / NEMA 3 complying with UL 50
• Reference Standards: IEC 60947-5-5 / UL 508 / IEC 60947-1 / IEC 60947-5-1 / CSA C22.2 No 14 / IEC 60364-5-53 / IEC 60204-1 / ISO 13850
• Product Certifications: GOST / CCC
• Vibration resistance: 5 gn (F= 2...500 Hz) in accordance with IEC 60068-2-6
• Shock resistance: 15 gn (duration = 11 ms) for half-sine wave acceleration complies with IEC 60068-2-27
