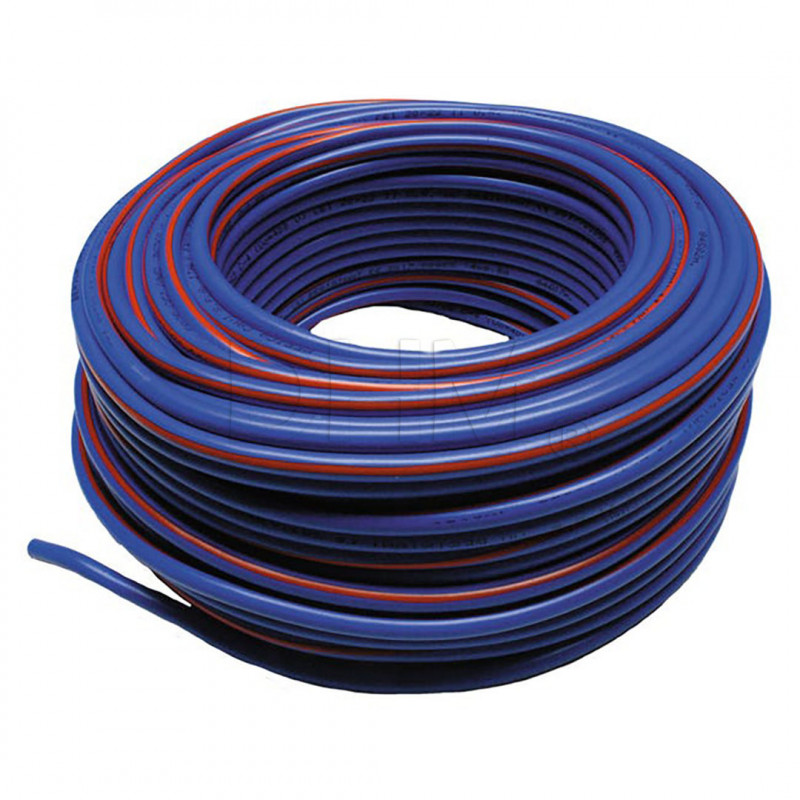

Cable for electronic control equipment - BLUE - FOR OUTDOOR 4x0.22 - per meter

Blue outdoor cable for electronic control equipment is a cable normally used for signal transmission, including weak signals, as it is shielded.

Strengths:

• Shielded with Al/Pet tape
• Non-fire propagating
• Low halogen emission and UV resistant
• CEI UNEL 36762
• Also ideal for use with gland chains

USE: Used in electronic control equipment, signal detection in outdoor intrusion detection systems, where increased protection against weathering and in particular ultraviolet rays is required. Ideal for use as a BUS in the Duet 3 system for connecting boards and expansions. All third-generation boards Duet3D communicate via CAN-FD bus, offering the possibility of expanding the management system of any controlled machine (via RJ11 connector).

POSE: For fixed indoor and outdoor installation. Can be installed on catwalks, pipes, conduits and similar systems. Possibility of laying together with energy cables having both 450/750 V and 0.6/1 kV markings used for systems with rated voltage to earth (Uo) up to 400 V.

Layout layers (starting from the inside):

1. Conductor
2. Insulator
3. Separator
4. Drainage
5. Shear wire
6. Shielding
7. Sheath

Package contains: 1 x BLUE electronic control equipment cable FOR OUTDOOR 4x0.22 - per meter
