CONSTRUCTION CHARACTERISTICS
Core: Flexible red copper, class 5
Insulation: PVC-based compound, R2 quality
Cordage: Twisted/corded cores with concentric crowns
Outer sheath: PVC-based compound, quality R16, oil-resistant in accordance with IEC EN 60811-404
Core colors: CEI UNEL 00722 - 00725 (HD 308 S2 - EN50334)
Outer sheath colors: gray (based on RAL 7035)
ELECTRICAL CHARACTERISTICS
Core operating voltage:
- 300/500V cross section ≤ 0.75 mm²
- 450/750V section ≥ 1.00 mm²
Outer sheath operating voltage: 450/750V
Test voltage:
- 2000V section ≤ 0.75 mm²
- 2500V section ≥ 1.00 mm²
APPLICATIONS
Cable for fixed laying complying with the requirements of the Construction Products Regulation (CPR EU 305/11), with the aim of limiting the production and spread of fire and smoke.
Multi-core cable for energy, control, signaling, command or measurement installations with oil-resistant outer sheath.
The non-fire spread characteristics (low risk bundle laying) and small external dimensions make it particularly suitable in intercom, civil, indoor industrial and machine-board applications.
This cable can always be installed in coexistence with 450/750V energy cables, and in addition, when used to supply category 0 systems (rated voltage less than or equal to 50V, if AC, or 120V, if DC or non-corrugated), it can also be installed in coexistence with 0.6/1kV energy cables supplying loads having rated voltage 230/400V.
All this does not exclude possible problems due to possible electromagnetic interference.
In addition, it can also be used for occasional acyclic laying applications without stress.
Caution. Underground laying, even if protected, is not allowed.
NORMATIVE REFERENCE
CEI 20-29 IEC 60228
CEI 20-11 EN 50363
IEC 60332-3-24 Cat.C IEC 60332-3-24 Cat.C
IEC UNEL 36762
CEI EN 60811-404
FIRE REACTION CLASS
EN 50575:2016 Cca - s3, d0, a3
TEMPERATURES
Minimum operating temperature:
- Fixed laying -25°C
- Occasional mobile laying without stress -5°C
Maximum operating temperature:
- Fixed laying +70°C
- Occasional mobile laying without stress +70°C
Maximum short-circuit temperature: +160°C
LAYING CONDITIONS.
Minimum laying temperature -5°C
Minimum laying radius d8
Max pull stress: 50N per mm^2 total copper section
Fixed laying
Occasional acyclic stress-free mobile laying
In pipe or conduit in air

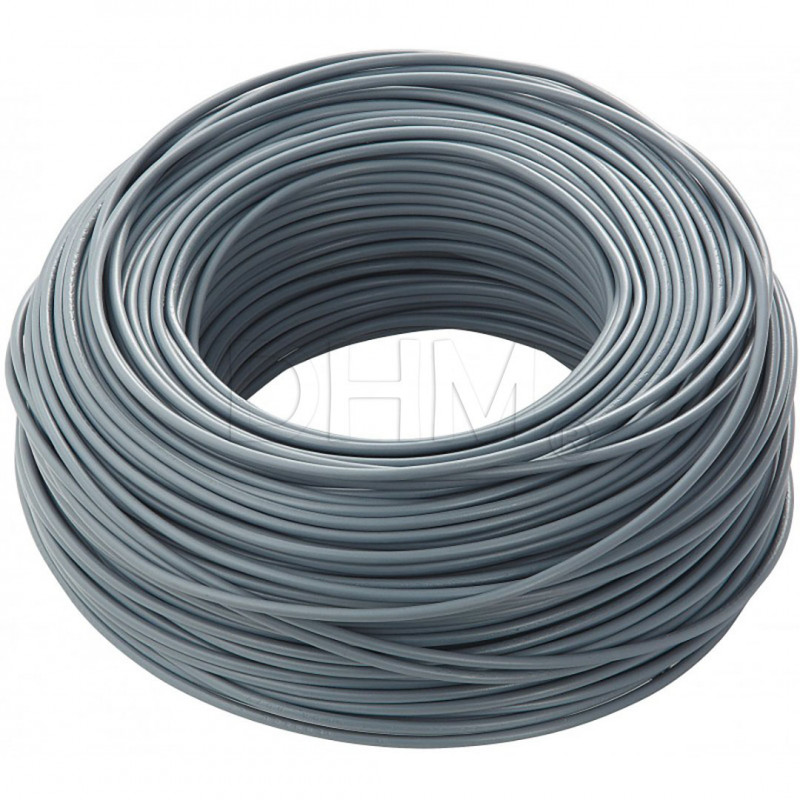

Package contains: 1 x FROR16 CABLE Cca 4 G 1.5 450/750V - per meter
