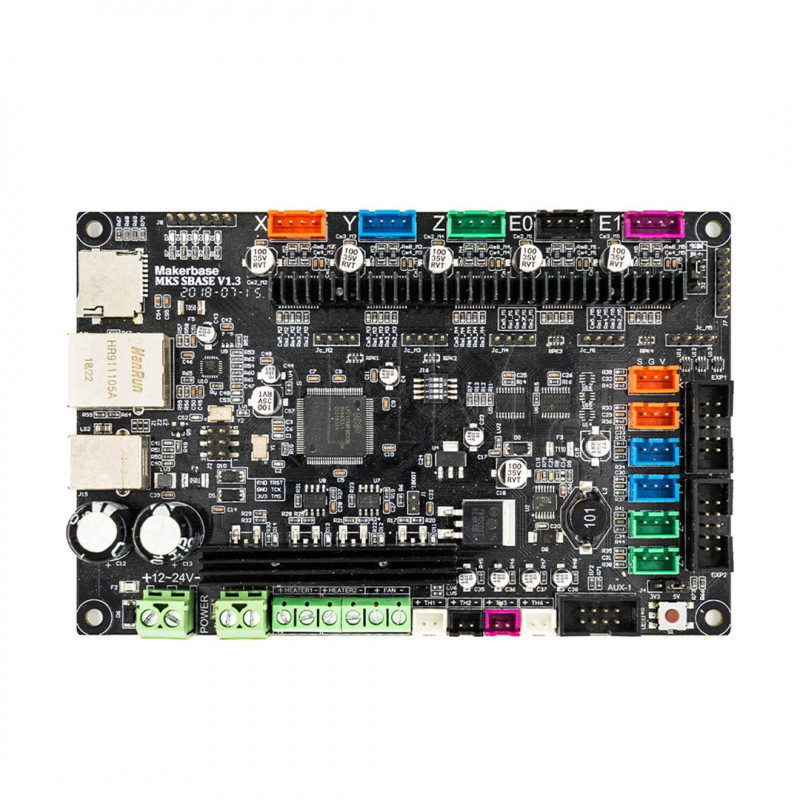

Package contains: 1 x Makerbase V1.3 board with screen
Download instruction file: drive.google.com/file/d/1sInUV8LHa65sM0ODotbb7w-O4WuIqwui/view?usp=sharing Configuration according to the following parameters:
Model: MKS SBASE V1.3
Size: 14.6x9.5cm
Input voltage: 12V-24V DC input
Motherboard controller: Arm integrated
Compatible display: good work with 12864LCD and MKS TFT touchscreen, can't work with MKS MINI12864LCD, OLED12864 and LCD2004 display
Extension 3.3V/5V for powering the limit switches
Note:
1. please confirm the power input '+' and '-' carefully before powering the board, or it will short circuit
2. Before the cable connection works, please make sure the power supply emits the right voltage, make sure the units are not reversed, otherwise it will burn out
3. Please do not connect or disconnect the motor when the power is on, it is easy for the unit to burn out; do not adjust the current while the motor is running. The correct way is to disconnect the power supply, unplug the motor, turn it on again, adjust the potentiometer and measure the voltage on the potentiometer until the measured voltage is the same as expected.
4. At present, MKS SBASE can only use the TFT series and LCD12864 display developed by Maker Base, it cannot work with MKS MINI12864LCD, OLED12864 and LCD2004 displays.
