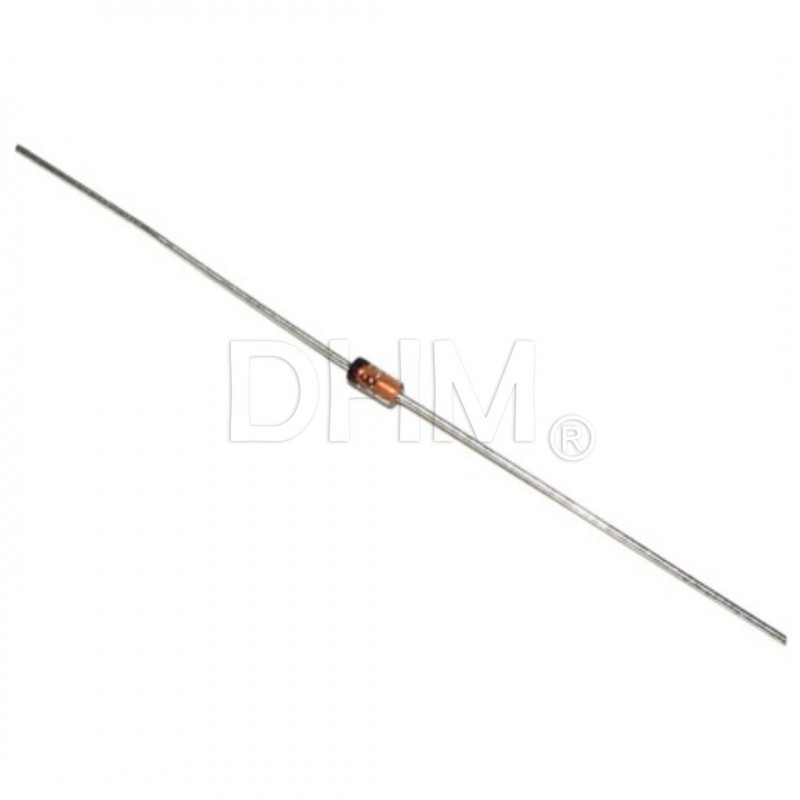

Package contains: 1 x Diode BAT43
Configuration: Single
Direct average peak current (If(AV)): 200 mA
Max. repetitive reverse voltage (Vrrm): 30V
Direct voltage (Vf): 450 mV
Max. reverse current: 100 uA
Non-repetitive peak current (Itsm): 4A
Power dissipation (Pd): 200 mW
Operating temperature, min.: -65 °C
Operating temperature, max.: 125 °C
Package type: DO-35
Pin: 2
Mounting type: Feed-through
Thermal resistance: 300 W/°C
This diode can be used in Duet3D boards-especially Duet WiFi/Ethernet revision 1.03 or earlier-to connect a normally open NPN inductive or capacitive sensor.
Connect the output wire of the sensor to the cathode of a diode, and the anode of the diode to the IN pin of the Z probe. The diode should be a small-signal Schottky diode such as BAT43 or BAT85.
For more information please contact us.
The item you receive may differ in some features from the one depicted in the photo, depending on the production batch. Despite this, functionality is maintained.
