EBB SB2209 CAN is an extruder breakout board designed by the BIQU Technology Co., Ltd. team for Voron StealthBurner. It allows communication via USB or CAN port, greatly simplifying wiring.
The SB2209 CAN board has a built-in driver TMC2209 that operates in UART mode.
Features of the SB2209 CAN board:
Connector: PH2.0 for easier crimping
Driver Integrated: TMC2209
Working mode of driver: UART
MCU: RP2040
Input voltage: DC12V-DC24V 9A
Logic voltage: DC 3.3V
Heater connection: Heater cartridge (E0), maximum output current: 5A
On-board sensor: ADXL345
Fan port: 2x PWM (FANO, FAN1), 1 x4-pin fan port
Voltage selection for 2-pin fans: Same voltage for both fans
Maximum fan port current: 1A continuous, 1.5A instantaneous
Stepper motor interface: EM
Temperature sensor interface: 1x 100K NTC (TH0), 1 x PT100/PT1000 selectable
USB communication interface: USB-Type-C
Maximum DCDC 5V output current: 1A
Expansion port: EndStop, ABL, RGB, PT100/PT1000, USB, CAN
Wiring with control boards
For example, Manta M8P + EBB
- Manta M8P + EBB SB2240/2209 CAN + EBB SB0000 CAN
- Octopus Pro + U2C + Raspberry Pi + EBB SB2240/2209 CAN

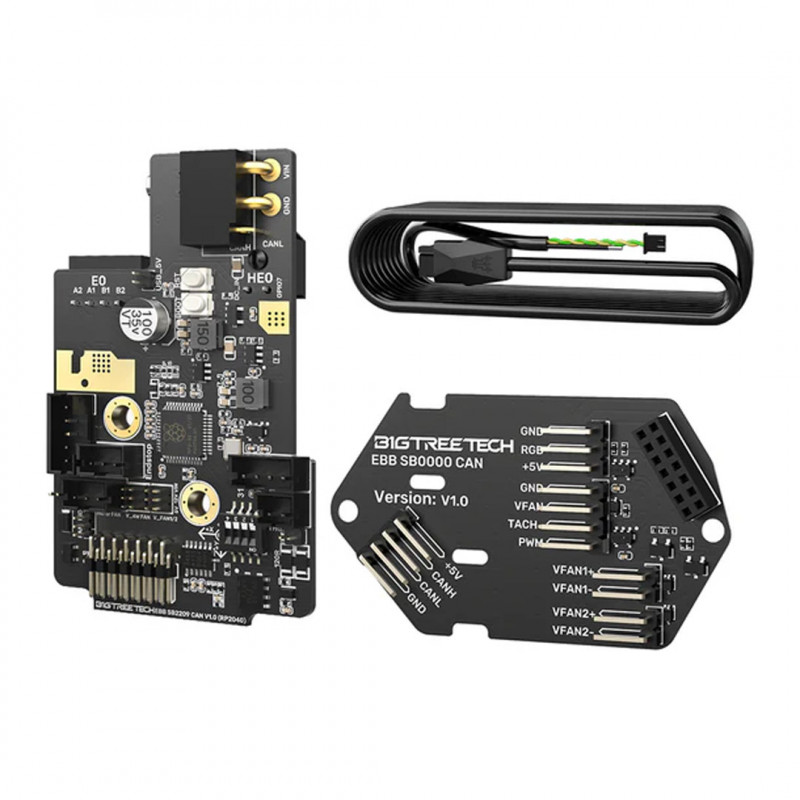

Package contains:
1 pc x EBB SB2209 CAN (RP2040)
1 pc x EBB SB0000 CAN
1 pc x 3 m CAN bus cable
1 pc x Heat sink
1 pc x Crimp terminal set
1 pc x Jumper terminal set
1 pc x Set of retaining screws
