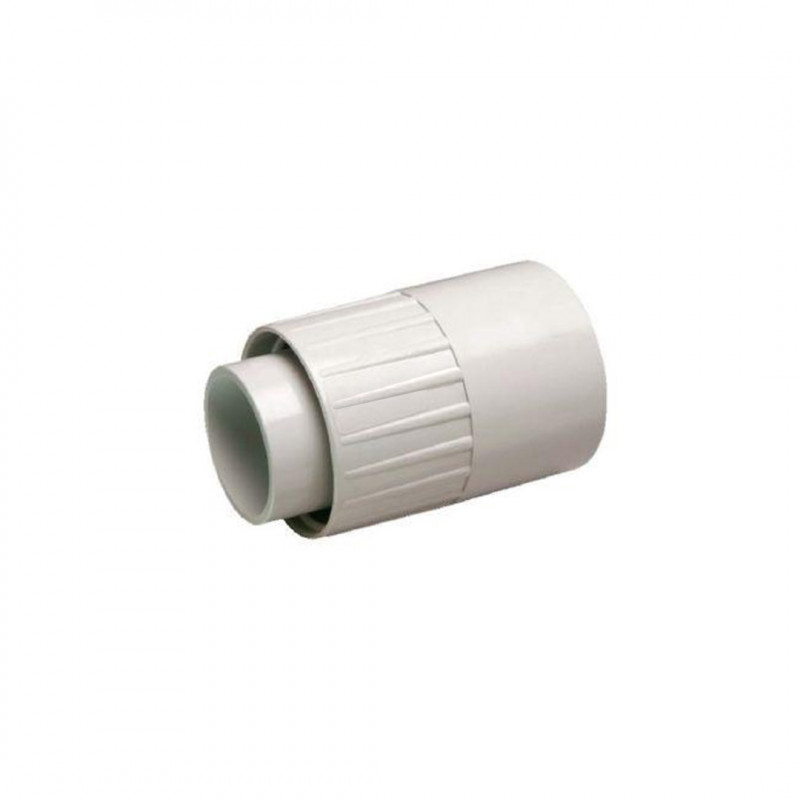

Package contains: 1 x Hose - conduit fitting IP67 Ø 20
Connects a rigid hose to a spiral conduit of the same nominal diameter. The connection of the rigid pipe (IP67) is made by means of the DRY system, the connection of the conduit is made by rotary motion and pressure (IP65). The minimum internal diameter of the system is the same as that of the rigid conduit.
Features
? Standards: CEI EN 61386-1, CEI EN 61386-21
? Material: rigid PVC-based
? Color: gray RAL 7035
? Impact resistance: class 3 (>2 kg from 10 cm at -5°C)
? Minimum temperature: class 2 (-5°C)
? Maximum temperature: class 1 (60°C)
? Flame resistance: self-extinguishing
? Glow wire test: ?glow wire test? 850°C
? Degree of protection: IP67 hose side, IP65 conduit side
