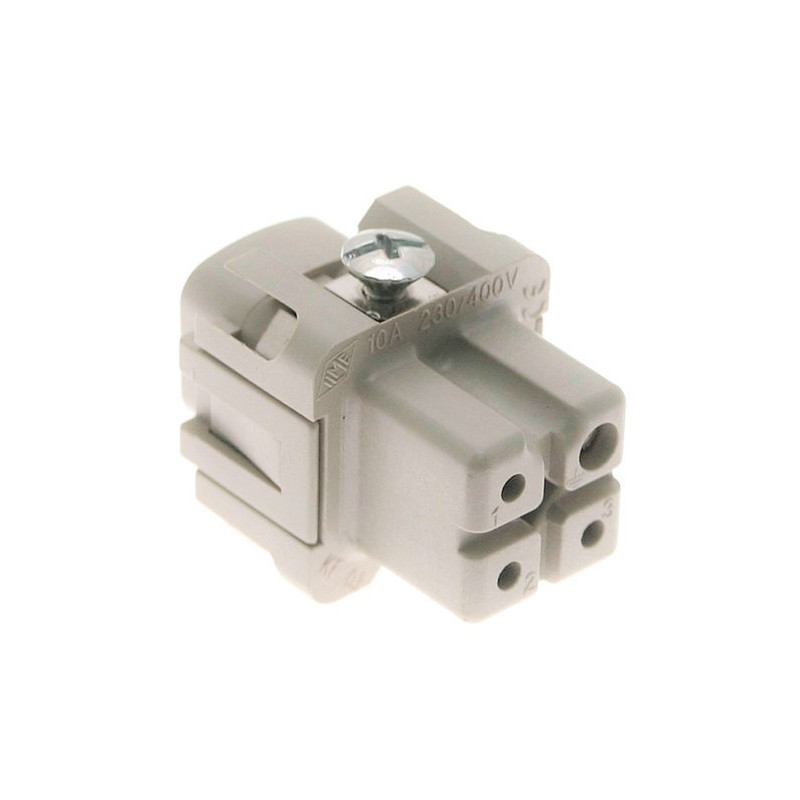

FRUIT SOCKET 3P.+T 10A 600V - CKF 03

Product Type: Fruit
Series: CK
Connection Type: Screw clamp connection
Gender: Female
No. poles: 3 poles + T
Size: Size "21.21"

Technical data
Current: 10 A
Voltage: 230 - 400 V
Rated impulse withstand voltage: 4 kV
Pollution degree: 3
Rated voltage according to UL/CSA: 600 V
Conductor cross-section: 0.75 mm² - 2.50 mm²
AWG cross section: 18 - 14
Contact type: Turned silvered
IP rating: IP20 without enclosure, IP44/IP66/IP67/IP68/IP69 in enclosure

Further technical details
Characteristics according to EN 61984: 10A 230/400V 4kV 3; 10A 400/690V 4kV 2
Coupling cycles: ≥ 500
Insulation resistance: ≥ 10 GΩ
Contact resistance: ≤ 2 mΩ
Weight: 13.00 g
Operating temperatures (min, max): -40°C ... +100°C
Conductor stripping length: 6 mm
UL 94 self-extinguishing grade: V-1
Main contact screw tightening torque: M3: 0.5 Nm; 4.4 lb.in (0.5 x 3 mm)
Ground screw tightening torque: M3: 0.5 Nm; 4.4 lb.in (0.5 x 3 mm)
Retaining screw tightening torque: M3: 0.5 Nm; 4.4 lb.in (Ph1 or 0.8 x 5.5 mm)

Material properties
Main material: Polycarbonate (PC)
Other materials: Copper alloy contacts
Color: Gray RAL 7032
RoHs compliance: Compliant with exemptions 6(c): copper alloy containing up to 4% lead by weight
China RoHs - EFUP: 50
REACH SVHC Substances: Yes (Lead)

Approvals / Standards
Reference standard: EN 61984:2009-06
Certifications: CSA, CQC, DNV-GL, BV, EAC
UL: ECBT2

Commercial information
EAN13 code: 8015747027939
Ecl@ss classification: 27440205
ETIM Classification: EC000438

For more information please contact us.

The item you receive may differ in some features from the one pictured, depending on the production batch. Despite this, the functionality is maintained.
