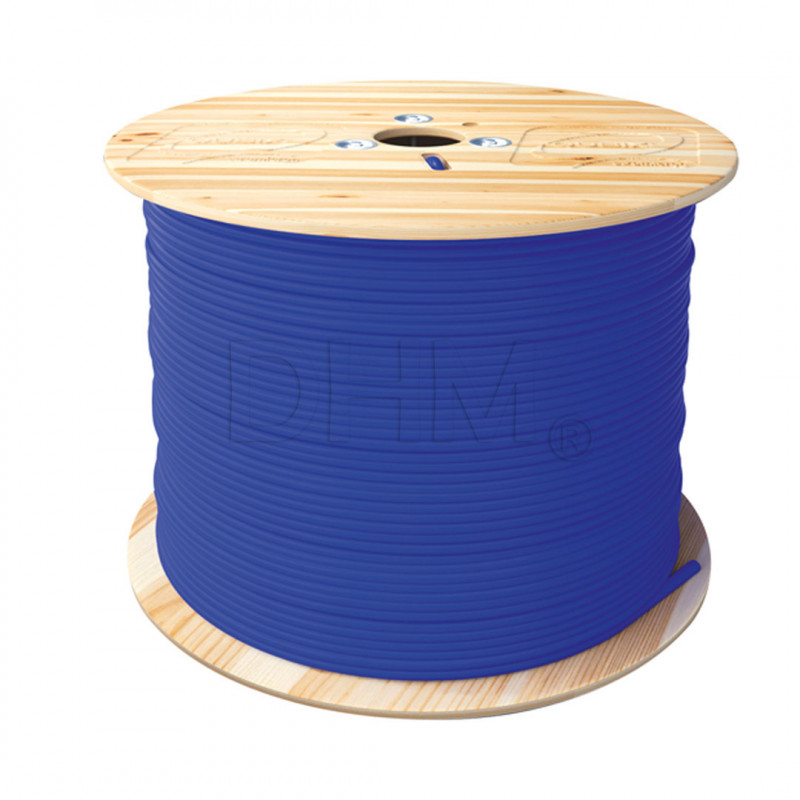

UTP LSZH CAT6 4x2xAWG24 Eca unshielded cable - by the meter
Added to your Project
Removed from your Project
Volume discounts
| Quantity | Price |
|---|---|
| 10 | €2.57 |
| 50 | €2.00 |
| 100 | €1.57 |
| 200 | €1.14 |
- Product Details
- Description
Category 6 unshielded 4-pair (100 Ohm) U/UTP cable with cross-over separator, LSZH (Low Smoke Zero Halogen) sheathing, flame retardant, tested up to 250 MHz. Suitable for making Class E transmission channels.
Applications and performance
Cable suitable for making general wiring systems in accordance with EN 50173, ISO/IEC 11801. Ideal for Class E indoor applications up to 1GbE over IEEE 802.3ab and PoE/PoE+/PoE++ protocol. Electrical characteristics exceed CAT.6 requirements.
Certifications
Force Technology approval for Category 6 data transmission cables according to ISO/IEC 11801-1/2:2017
IEC 61156-5:2012 (Ed.2.1)
EN 50173-1/2:2018
EN 50288-6-1: 2013
ANSI/TIA-568.2-D
Construction Characteristics.
Conductor material/diameter: Red copper/AWG 24/1 (0.54 mm)
Insulation material/diameter: Solid polyethylene diam max 0.96 mm
Outer diameter: 6.0 mm
Material/ext. sheath color: LSZH/Blue RAL 5015
Weight: 39 Kg/Km
Mechanical Characteristics
Usage: Indoor
Bending radius Installation: 8 x outer diameter
Bending radius Operation: 4 x outer diameter
Max Cable Pull: 110 N (11kg max.)
Installation Temperature: 0°C to +50°C
Operating Temperature: -10°C to +60°C
Fire Behavior.
CPR Regulation: EN 50575
Reaction to fire: EN 60332-1-2 / IEC 20-35/1-2
Smoke density: EN 61034-2 / CEI 20-37/3-1
Acid gas emission: EN 60754-2 / CEI 20-37/2-2
Electrical Characteristics.
Conductor resistance (in loop): 19 Ohm/100m
Insulation resistance: 5 GOhm x km
Mutual capacitance: 56 pF/m
Capacitive unbalance: 3300 pF/km
Nominal NVP propagation speed: 68%.
Max. propagation delay: 570 ns/100m
Characteristic impedance: 100 ± 15 ohmsPackage Contains: 1 x UTP LSZH CAT6 4x2xAWG24 Eca CABLE - per meter
- Read more
For more information please contact us.
The item you receive may differ in some features from the one depicted in the photo, depending on the production batch. Despite this, functionality is maintained. - Questions(FAQs)
