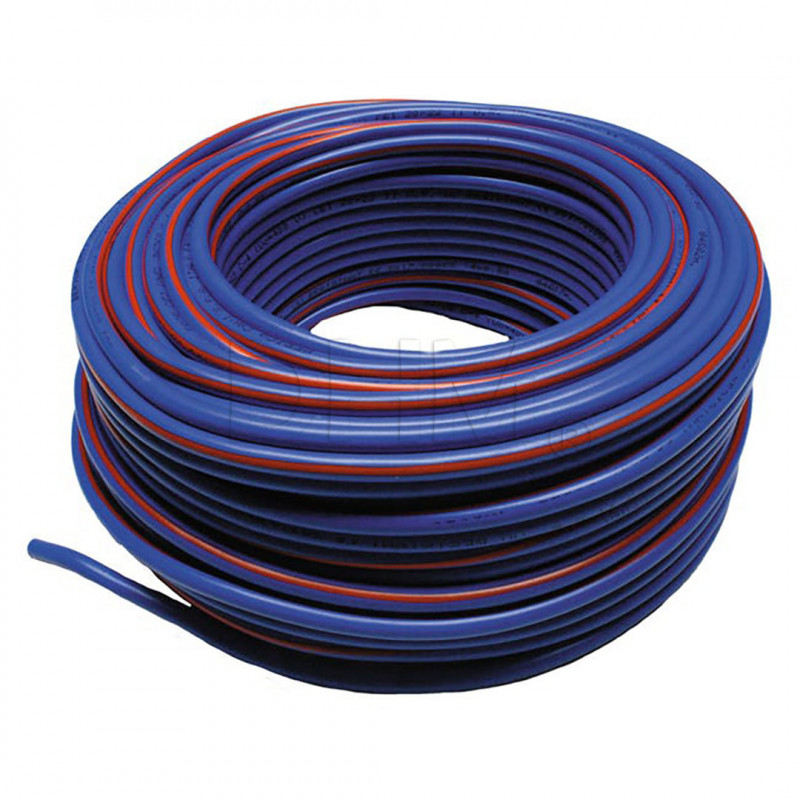

FTP CABLE 4X2XAWG 24/1 CAT 6 BLUE for outdoor use - by the meter
Added to your Project
Removed from your Project
Volume discounts
| Quantity | Price |
|---|---|
| 10 | €3.72 |
| 50 | €2.90 |
| 100 | €2.27 |
| 200 | €1.65 |
- Product Details
- Description
FTP 4X2XAWG 24/1 CAT 6 BLUE cables for outdoor use are flame-retardant, halogen-reduced, UV-resistant data transmission cables.
This type of cable complies with CEI UNEL 36762, in fact they consist of (starting from the inside to the outside):
- Crucible
- Conductor
- Insulator
- Separator
- Drainage
- Shielding (FTP model only)
- Inner sheath
- Outer sheath
USE
Used for data transmission up to 250 MHz in LAN structured cabling systems (CEI EN 50173 class E), where increased protection against weather and particularly ultraviolet rays is required.
LAYING
For fixed indoor and outdoor installation. Can be installed on catwalks, pipes, conduits and similar systems. Can be laid together with energy cables having both 450/750 V and 0.6/1 kV markings used for systems with rated voltage to earth (Uo) up to 400 V.
CHARACTERISTICS
Conductors: annealed red copper (23AWG)
Insulation: low-density polyethylene LDPE
Core colors: whiteblue/blue - whiteorange/orange - whitegreen/green - whitebrown/brown
Crucible: polyethylene separator crucible
Separator: pet tape
Drain: annealed tinned copper
Shielding: Al/Pet tape
Inner sheath: thermoplastic compound / CEI EN 50363
Outer sheath: Rz quality PVC / CEI EN 50363
Sheath color: blue RAL 5015 with red RAL 3000 stripe
Non-flame propagating: CEI EN 60332-1-2
Low halogen emission: (< 22%) / CEI EN 50267-2-1 - IEC 60754-1
Resistant to oil: CEI 20-34/0-1
UV resistant: HD 605
Electrical resistance: < 190 Ω/km(loop) / CEI EN 50288-5-1/6-1
Characteristic impedance: 100 ± 5Ω at 100 MHz
Test voltage: 700 Vac x 1 min.
Max. operating temperature: 70 °C
Min. laying temperature: 0 °C
Bending radius: Ø x 8
Marking: BERICA CAVI S.P.A. ITALY UV RESISTANT Formation CEI UNEL 36762 C-4 (Uo = 400 V) 100 OHM CE - Year/Batch - 00000 mPackage contains: 1 x FTP CABLE 4X2XAWG 24/1 CAT 6 BLUE for outdoor use - per meter
- Read more
For more information please contact us.
The item you receive may differ in some features from the one depicted in the photo, depending on the production batch. Despite this, functionality is maintained. - Questions(FAQs)
