Upgrade kit compatible only with LGX Lite for use on:
Creality CR-6 SE
CR-6 Max
CR-10 Smart

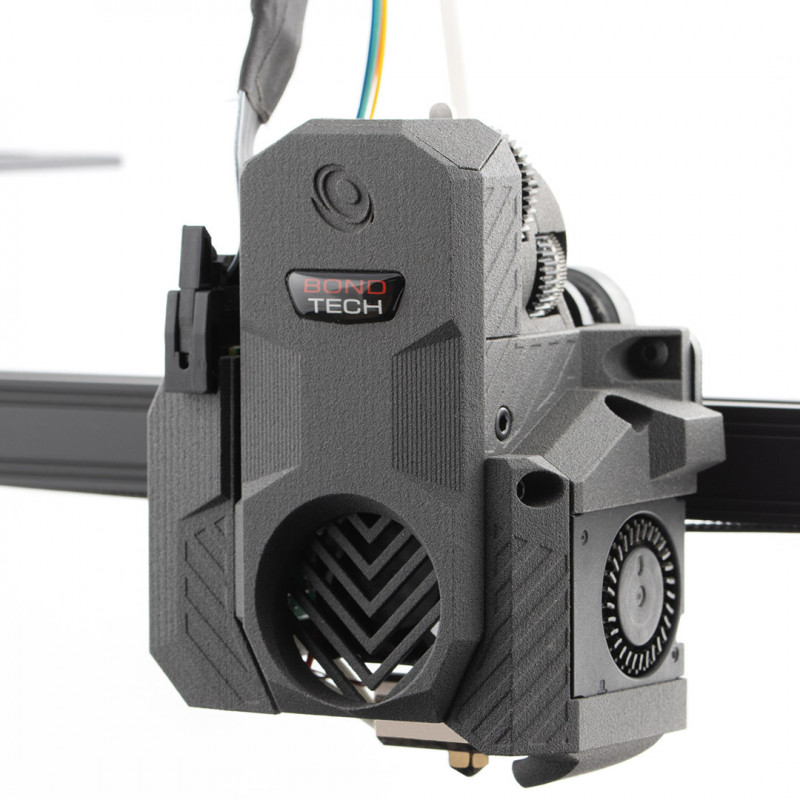

The plastic parts of LGX Lite Arrow for Creality are made of dye-free gray polyamide (PA12) with a protective wax coating.
Extruder not included.
An LGX Lite extruder is required to use this kit.
Key Features.
Converts compatible printers from Bowden to Direct.
Additional load on the extruder is limited to the LGX Lite itself.
The housing is lightweight and insulated from the extruder to allow leveling of the extensometer.
It is compatible with all available hotend and cooling fans.
The housing is easy to remove for maintenance and service ofhotend and the extruder.
The Z position of the fan cover can be adjusted.
Additional Features.
Weight : 65g
Steps E : 562 @ 16 microsteps
Klipper rotation distance: 5.7
Stepper motor current: 0.45 to 0.65A max
Maximum operating temperature: 90°C
Can be upgraded with the hotend from Slice Engineering:
Copperhead Screw Mount
Mosquito
Mosquito Magnum
Mosquito Magnum + Air
Product includes:
1x LGX Lite strain gauge mounting set
1x LGX Lite Arrow housing set
1x LGX Lite Arrow Hardware mounting set with:
4x M3x6 cylinder head screws
4x M3x8 cylinder head screw
2x M3x10 cylinder head screw
1x M3x16 screw
2x M3x20 screw
1x screw M3x25
4x square nut M3
1x cutting device Capricorn
1x tube Capricorn 70 mm
