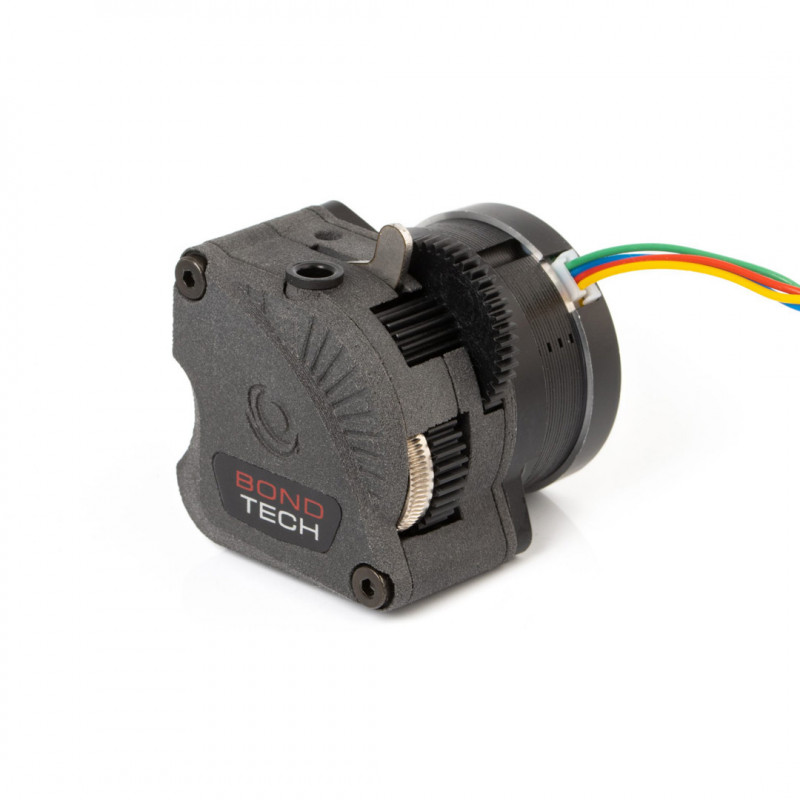

BondTech's LGX Lite Mirrored is a lightweight extruder that weighs only 48 g. It also features large LGX drive gears, an opening for maintenance, and a pre-tensioning lever. The extruder consists of a 3D printed nylon housing made of PA-12, which provides maximum strength, high precision, and exceptional temperature resistance.
In particular, the drive gears are large made of hardened steel and provide better grip on the filament. The maintenance opening, on the other hand, makes it easy to clean the drive gears. The filament path of the LGK extruder is more compact, lighter and more centered, ensuring higher performance and compatibility. The pre-tensioning system is operated by a lever that can be used to release tension and set two different positions:
- Position 1 for use with rigid materials
- Position 2 for use with semi-flexible and flexible materials.
In addition, the extruder is equipped with M3 holes with multiple mounting patterns, offering different mounting options as needed.
Key features:
- Made of polyamide 12 for maximum strength, precision and enhanced temperature resistance.
- Ultralight and compact
- Compatible with Nema14 round stepper motors
- Pretensioning lever to ensure repeatability
- Large gears for better filament grip
- With compact filament path
- Multiple mounting options due to different hole patterns
Package contains:
1 x LGX® Lite
1 x 2mm hex wrench
1 x Push-fit collar
1 x 30mm PTFE tube
8 x M3 nut
