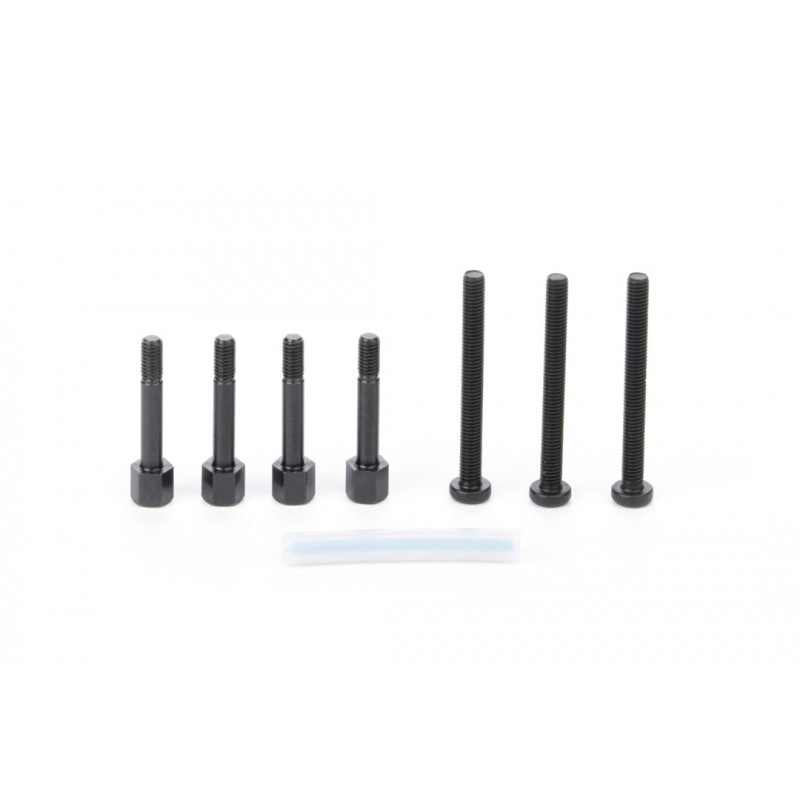

Set of spare parts for eXtruder Bondtech LGX? Large Gears with:
? 3x low head screws M3x30
? 4x screws to fix the motor M3x18 with mounting thread M3x4
? 1x 30mm PTFE tube
Expand the possibilities of your LGX? with this set of mounting accessories
Mount a plate between the extruder and stepper motor with the longer screws
Expand the mounting possibilities with the motor pins (up to 4 additional mounting points)
Improve direct drive performance with the PTFE tube (sized for Copperhead)
Recommendations for M3x30 low head screws:
Reposition M3x27mm screws to the 3 locations highlighted in photo
M3x30 screws are compatible with mounting plates 1 and up to 3mm thick
If the mounting plate is 1mm thick or thinner, use the default M3x27 screws
PFTE tube lengths:
Copperhead screw fitting: 30mm
New Mosquito and Mosquito Magnum: 11mm
Old Mosquito and Mosquito Magnum: 10mm
PFTE cutting recommendations:
PTFE tubing should be cut straight on both ends.
A slight bevel on the inside is recommended, but not mandatory.
