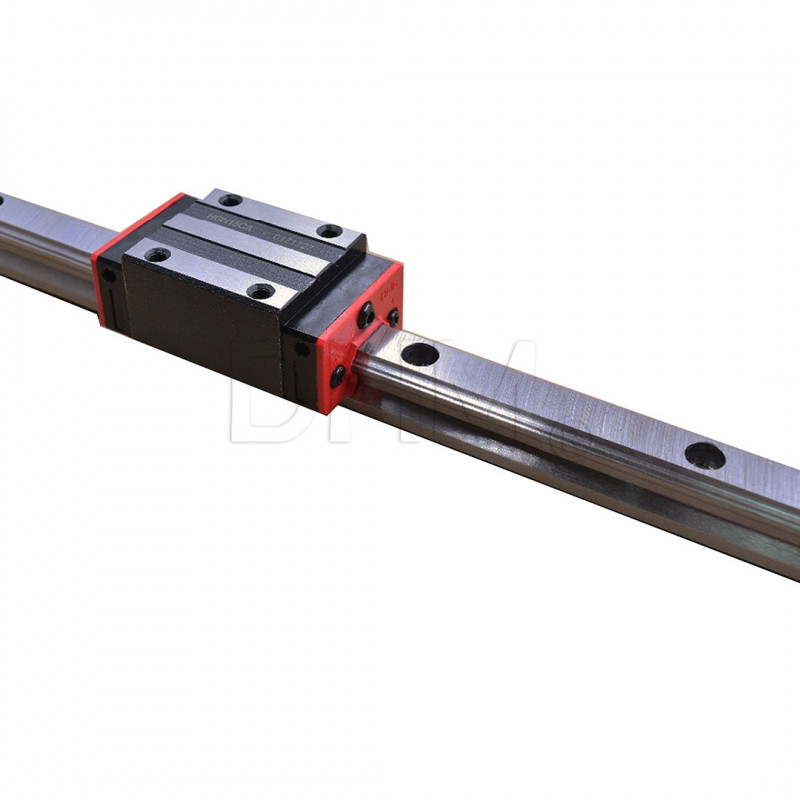

Profile rail guide HGR15 1 meter

Name: Profile rail guide HGR15 1 meter
Brand: DHM
SKU: 03040103
Price: 49 EUR
Availability: InStock

Reference: 03040103

€49.00

VAT included Shipping excluded

Immediate Availability

Dispatch in 24/48H

Product Details
Brand DHM
Reference 03040103
-- Stocks: Immediate Availability *

*Regular shipments throughout the country

Data sheet
Material
Stainless steel
Series
HGR
Guide width
15mm
Guide length
400mm
Track type
Standard
Block type
-
Preload
Standard
Accuracy
Standard grade
Description
The package contains: 1 x Profile rail guide HGR15

Linear recirculating ball guide 15 mm. The recirculating linear guides allow to obtain a linear motion based on rolling elements, as in this case of the spheres. Through the recirculation of these balls between the rail and the carriage, the guide allows to have a very precise linear motion, with a very low coefficient of friction. Thanks to the constraints that are created between the rail and the carriage, the guides of this type can bear loads both vertically and horizontally. The series to which the guide in question belongs is ideal for small movements.

The item that you can get for certain features differ from the one shown in the photo, depending on the production lot. However, the functionality is retained. The description of this item has been provided by automatic translation. If you have any questions, please do not hesitate to contact us.
Read more
Specifications in the data sheet inside the image gallery .For further information please contact us.

The object that you will receive may differ in some features from that represented in the picture, depending on the production batch. Despite this, the functionality is maintained.
