HGH20CA carriage Linear guides 03040203 DHM

Add to Compare

Product Sheet

Please login to Download PDF

Add to Project

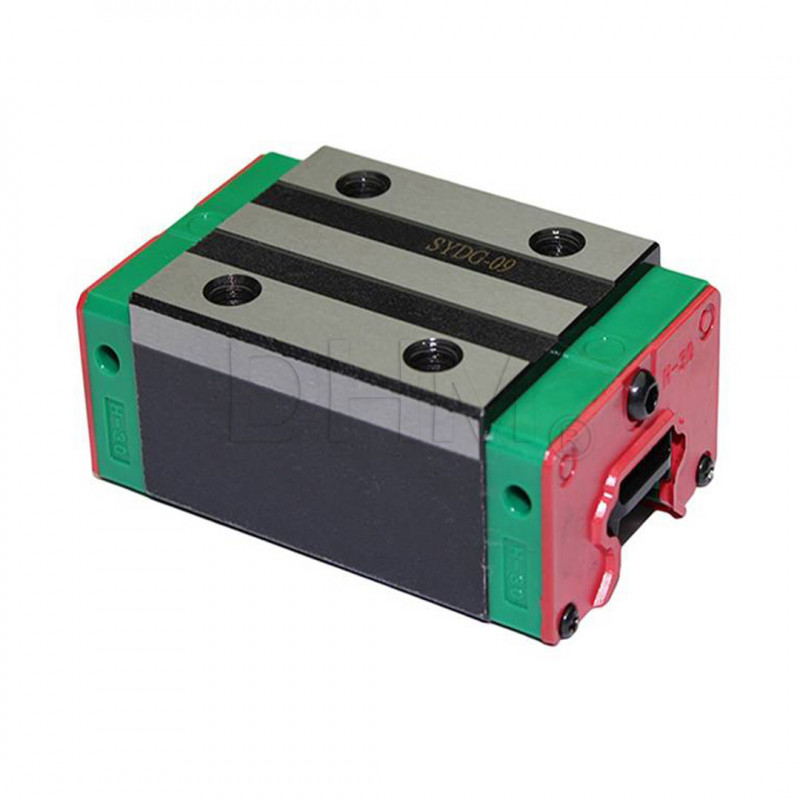

HGH20CA carriage

Name: HGH20CA carriage
Brand: DHM
SKU: 03040203
Price: 35 EUR
Availability: InStock

Reference: 03040203

€35.00

VAT included Shipping excluded

Immediate Availability

Dispatch in 24/48H

Product Details
Brand DHM
Reference 03040203
-- Stocks: Immediate Availability *

*Regular shipments throughout Europe

Data sheet
Material
Stainless steel
Series
HGH
Guide width
20mm
Guide length
400mm
Track type
Standard
Block type
Standard
Preload
Standard
Accuracy
Standard grade
Description
The package contains: 1 x HGH20CA carriage

The linear recirculating ball guides have been designed to give greater precision with compact dimensions and high load capacity. These are associated with various types of trolleys (or skates).

Features and advantages

• High load capacity in all directions of load application

• Sliding operation thanks to ball recirculation

• Low friction gaskets

Attention when changing the carriage that the balls do not come out of the cage.

The item that you can get for certain features differ from the one shown in the photo, depending on the production lot. However, the functionality is retained. The description of this item has been provided by automatic translation. If you have any questions, please do not hesitate to contact us.
Read more
Specifications in the data sheet inside the image gallery .For further information please contact us.

The object that you will receive may differ in some features from that represented in the picture, depending on the production batch. Despite this, the functionality is maintained.
