Z-axis touch probe Voron 2.4 PCB endstop board with GT2 pulley and 5x30mm shaft

Name: Z-axis touch probe Voron 2.4 PCB endstop board with GT2 pulley and 5x30mm shaft
Brand: DHM
SKU: 18050357
Price: 19 EUR
Availability: InStock

Reference: 18050357

€19.00

VAT included Shipping excluded

Immediate Availability

Dispatch in 24/48H

Product Details
Brand DHM
Reference 18050357
-- Stocks: Immediate Availability *

*Regular shipments throughout the country

Data sheet
Suitable for the following 3D printers
Voron 2.4
Description
This kit allows you to mount a "probe" for the z-axis of your printer Voron 2.4

The PCB facilitates the wiring of the z-endstop for the printer Voron.
It is pre-assembled with a 1 A 125V AC microswitch and a 2-pin JST connector.
Also included is a 40-cm cable and mounting screws.
For proper mounting on the printer Voron if the PCB limit switch has a toggle this must be removed.
A narrow-nose pliers can be used and light force applied to remove it.

Self-tapping screws for assembly are also provided.

In addition to the board in the kit is a GT2 pulley Ø 5mm 20 teeth H6. This is press-fitted into the molded component (not supplied in the kit) to act as a seat for the spindle and thus allow proper operation of the "feeler."

The spindle is a hardened and ground round steel with a diameter of 5 mm and a length of 30 mm.
This may or may not have a small groove, but this is not essential to operation.

Together with the PCB board and the GT2 20-tooth pulley it creates an economical "feeler" system that then allows proper home of the axes of your 3D printer.

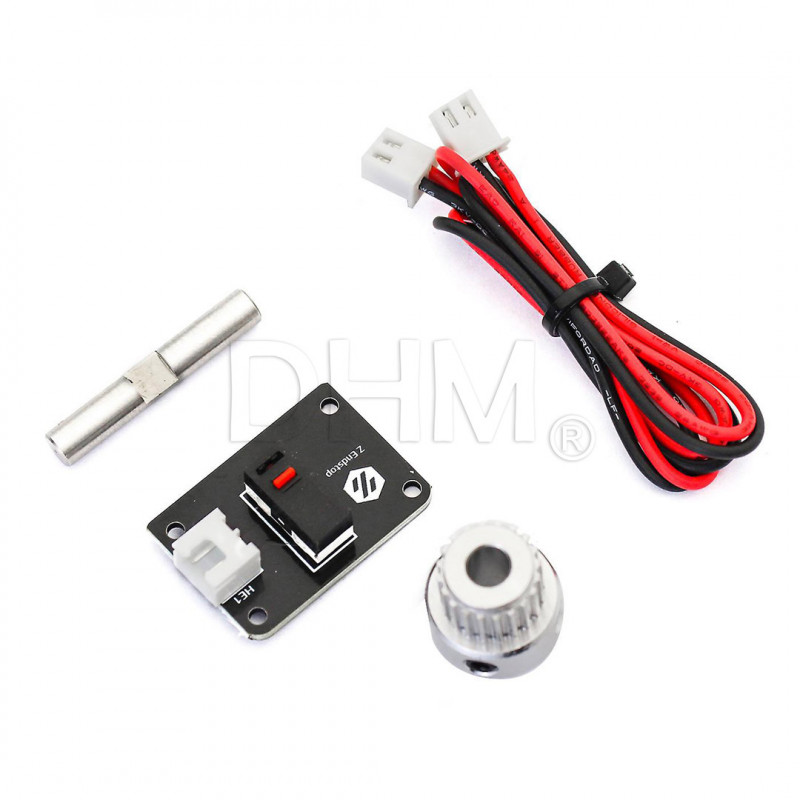

Package contains:
1 x Z-axis endstop PCB board with 40cm cable for Voron 2.4
1 x GT2 pulley Ø 5mm 20 teeth H6
1 x Hardened and ground shaft Ø 5mm x 30mm for Voron 2.4
Read more
For more information please contact us.
The item you receive may differ in some features from the one depicted in the photo, depending on the production batch. Despite this, functionality is maintained.
