Package Contains:1 x Microswitch Limit Switch V-156-1C25 - Micro Limit Switch Lever Switch 15a 125v-250v

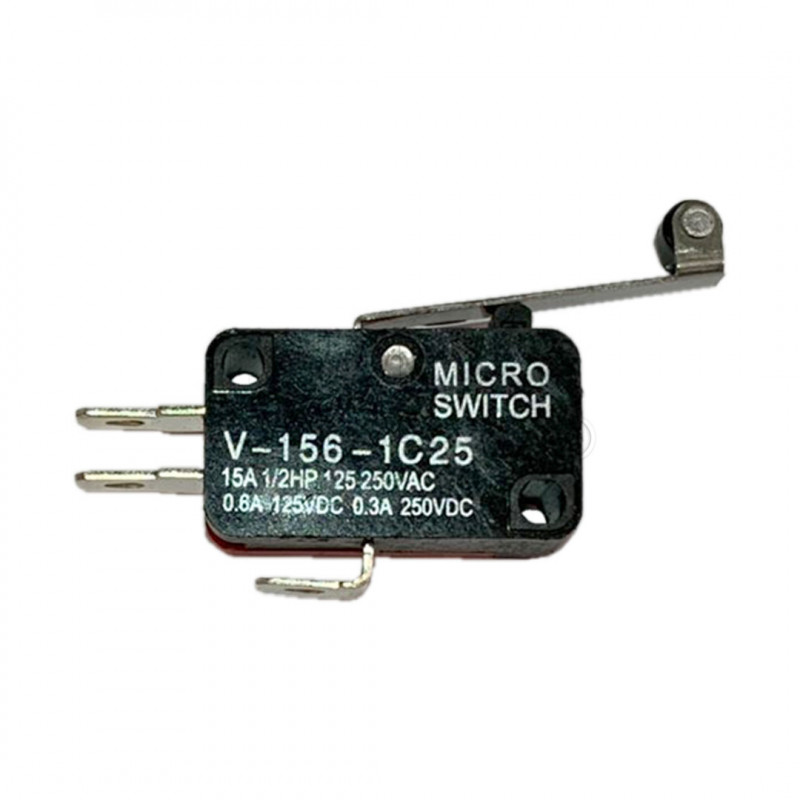

Micro Switch AC 250V 15A V-156-1C25 SPDT Lever Switch
High precision mechanical design that offers sharp operation and long life.
Features with hinged actuator, 1NO + 1NC Contact Configuration, 3 Terminal design.
In snap-action contacts, the movement of the actuator applies force to an overload mechanism.
This mechanism creates a rapid change in contact state when the endpoint is reached.
Reversal of actuator motion at a given reset point causes the contacts to return to their original position.
Contact Configuration: 1NO, 1NC (SPDT)
Features:
Switch Body Size: 27.8 x 15.9 x 10mm
Roller: 4.75mm
Lever Length: 27mm
Current: 15A, AC250V
Resistance to Voltage: AC1,0000V 1 minute
Insulation Resistance: 100M O DC500V
Contact Resistance: & lt; 100Mo
Ambient Operating Temperature: -25°C to + 80°C
Used ambient humidity: 85% RH
mechanical life: 5,000,000 cycles
electrical life: 100,000 cycles
