Driver TMC2208 V3.0 UART BIGTREETECH - driver stepper for 3D printer Motor driver 19570017 Bigtreetech

Add to Compare

Product Sheet

Please login to Download PDF

Add to Project

Info! You can also add a product to your project that is not available for purchase.

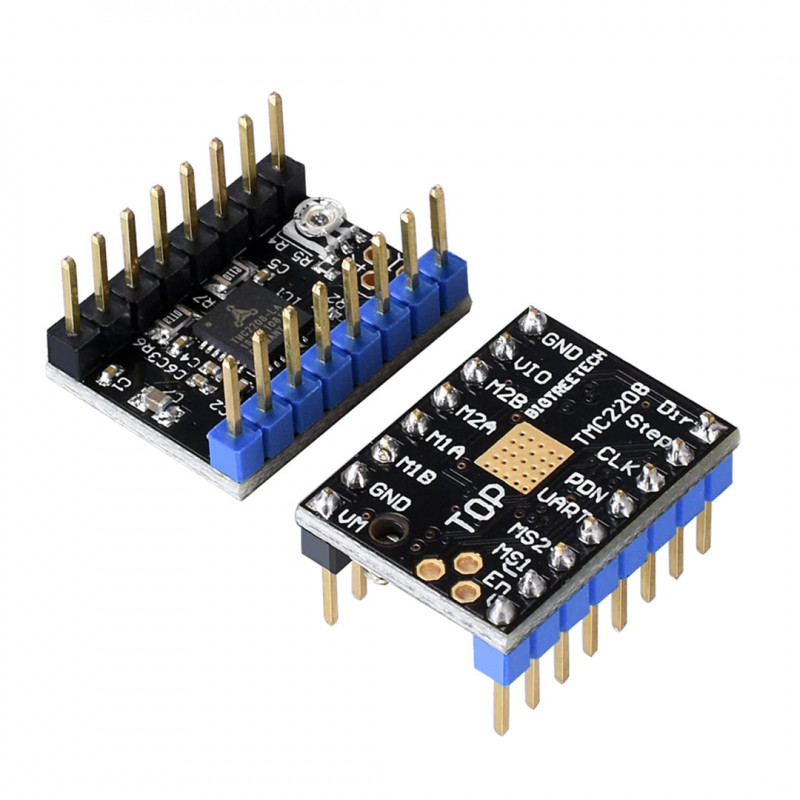

Driver TMC2208 V3.0 UART BIGTREETECH - driver stepper for 3D printer

Name: Driver TMC2208 V3.0 UART BIGTREETECH - driver stepper for 3D printer
Brand: Bigtreetech
SKU: 19570017
Price: 5.56 EUR
Availability: PreOrder

Reference: 19570017

€5.56

VAT included Shipping excluded

Pre-order Now

Delivery times indicated in stock details

Product Details
Brand Bigtreetech
Reference 19570017
-- Stocks: Immediate Availability *

*Regular shipments throughout Europe
Description
TMC2208 is an extremely quiet driver motor for two-phase stepper motors.
The continuous drive current is 1.2A and the peak drive current is 2A.
Compared with the previous model, the TMC2100, this driver has been expanded with the new StealthChop2 mode. This driver enables smoother and quieter movements.
The TMC2208 V3.0 model is also available in UART mode.
Alternatively, it is possible to make the TMC2208 V3.0 STEP/DIR model in UART mode by soldering the J2 position according to your needs.

Advantages of UART mode:
- Motor current can be set arbitrarily by the firmware
- Microsteps can be set arbitrarily by the firmware (up to 256 step effective)
- The actual and interpolated microsteps can be combined to obtain the maximum torque
- maximum torque.
- The firmware can dynamically switch stepper motors between stealthChop2 and spreadCycle modes via UART.
- When the motor is not in motion, the standby current of the motor can be dynamically reduced (via UART).
More information, firmware and instructions are available here:
https://github.com/bigtreetech/BIGTREETECH-Stepper-Motor-Driver/tree/master/TMC2208/V3.0

Package contains: 1 x BIGTREETECH Driver TMC2208 V3.0 UART mode
Read more
What are the features of Driver TMC2208 V3.0 UART mode?
- Dimensions: 15.24 mm x 20.32 mm
- Input voltage: 4.75V-36V DC
- peak current 2A
- Logic voltage: 3.3V / 5V
- Current consumption per phase 1.2A
- Max. Microstep 256
- Configuration via UART mode
- StealthChop2 - for quiet operation and smooth motion
- SpreadCycle - highly dynamic motor control chopper
More specifications inside the image gallery. For more information please contact us.
The item you receive may differ in some features from the one pictured, depending on the production batch. Despite this, the functionality is maintained.
