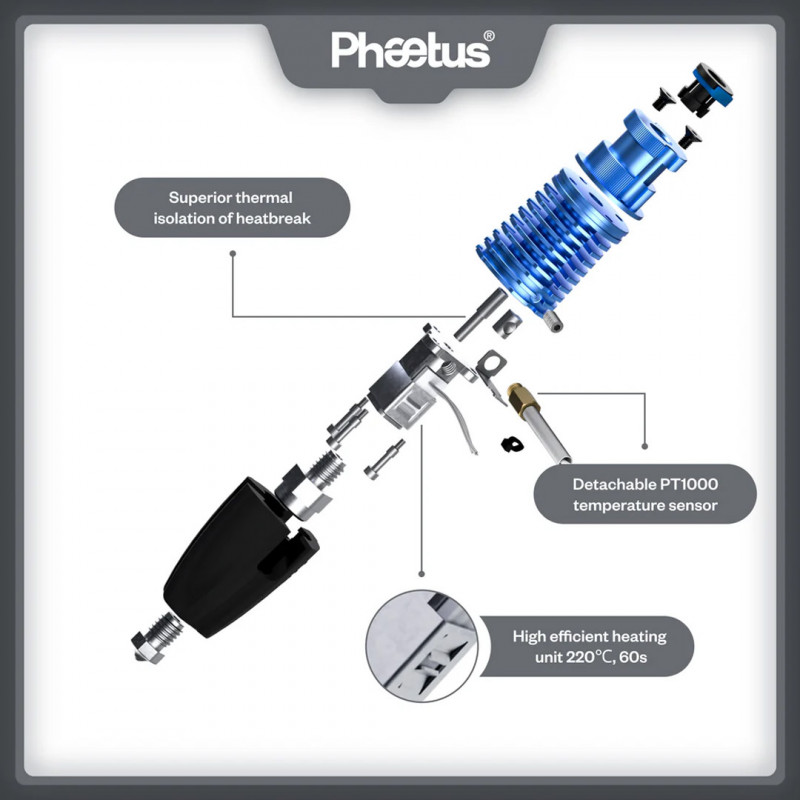

Main features of the Rapido Plus Hotend 2 HF:
- Heating block design: Wider melt zone for high-speed, high-temperature printing.
- Titanium tube heatbreak: Better extrusion control and thermal insulation, reduced warpage and clogging.
- Ceramic heater: Reaches 200°C in 35 seconds.
- Maximum printing temperature: 350°C
- Removable PT1000 thermistor: Easy to replace.
- Change rapido of heads: Easy switching between High-Flow and Ultra-High-Flow, compatible V6 nozzles.
- Rigid structure: Allows one-handed nozzle changing.
Comparison Rapido and Rapido 2:
- Shape and dimensions Rapido 2: Identical to Rapido.
- Compatibility Rapido 2: Compatible with the same models as Rapido.
- Appearance Rapido 2: Same design as previous model.
- Direct replacement: Users can replace the Rapido with the Rapido 2 without modification.
Details
The hot-end Phaetus Rapido 2 Plus come in two types: HF (High Flow) and UHF (Ultra High Flow).
The higher thermal insulation ofheatbreak eliminates any kind of heat loss, also allows a significant reduction in the risk of filament clogging, and thanks to excellent wear resistance, it is ideal for printing loaded filaments.
The ceramic heating block achieves high heating efficiency and reliability (200°C in just 35 seconds) (Maximum printing temperature 350°C), which enables high volumetric flows of up to 36%. With these flow rates (most) 3D printers can be pushed to the limit.
The temperature sensor is replaceable and as such the PT1000 sensor can be used to meet high temperature printing requirements.
Not all 3D models need to be printed at high speed, so you can easily switch from the high-flowHotend Rapido Plus 2 to the ultra-high-flowHotend Rapido Plus 2 using the copper-nickel plated nut adapter.
Titanium alloy screws, with their low thermal conductivity, create a rigid coupling between the heating block and the heat sink. This rigid structure allows the nozzle to be changed with one hand.
There are many different nozzles on the market for different purposes. With theHotend Rapido Plus 2 you can choose the right nozzle for each printing process.
Compatible models:
- Fits all Prusa models.
- Other models can be assembled with adapters found here: https://github.com/Phaetus/Rapido-2-Plus
Compatible Filaments:
- Universal Filaments: PLA/ABS/ASA/PETG/TPU/PP/PC-ABS/PLA GF-CF/ABS GF-CF/ASA-GF/PETG GF-CF/NexABS-GF25/NexABS-CF20
- Technical Filaments: PET-CF/PET-GF/PAHT-CF/PAHT-GF/NexPA-CF25/NexPA-GF25/PPA/PA/PC/PMMA/PP-Modified
Package contains: 1 x Rapido Hotend 2 Plus HF
Also included are the following accessories:
- 1 x Bowden collet
- 1 x collet clip
- 1 x 1.5 allen wrench
- 1 x 2.0 allen wrench
- 4 x hexagon socket head cap screws M2.5x8.0
- 2 x hexagon socket head cap screws M2.5x5
- 1 x extension cable for heating cartridge (1m)
- 1 x extension cable for white thermistor (1m)
- 1 x titanium screw M1.6x9.3
- 1 x spring
- 3 x cable ties
- 1 x thermal paste
Warning. Remember that getting quality prints requires more than just changing thehotend. Many factors must be evaluated to solve any printing problems, including printer structure, mechanical drive components, parameters slicing, filament quality, nozzle quality...
