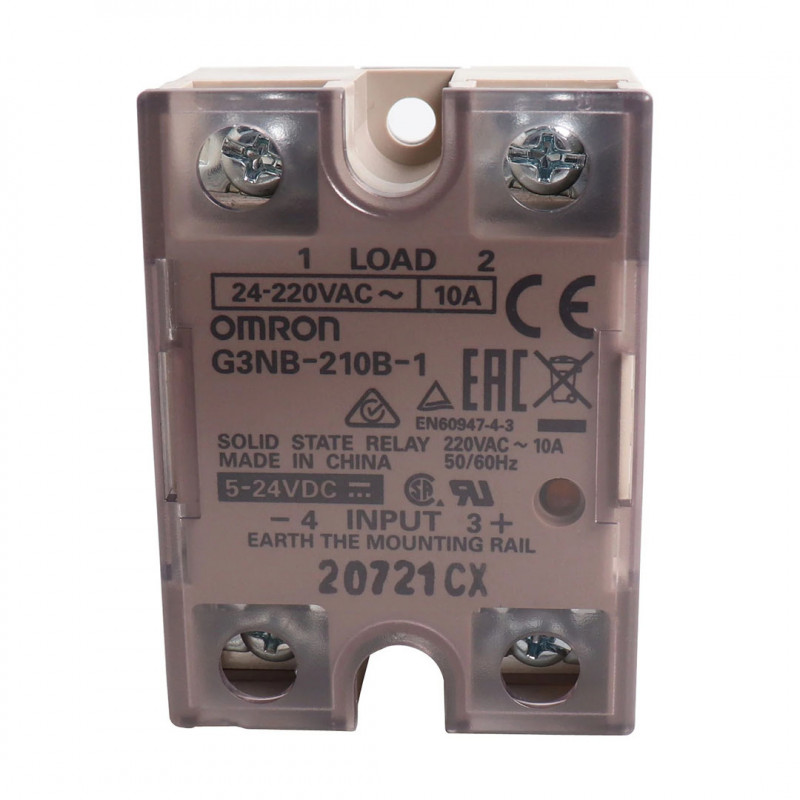

Omron's G3NB-210B-1 is a 10 A output SSR relay, equivalent to the G3NB-210A-1
The G3NB-210B-1 relay is designed for input voltages between 5 and 24 V, while a built-in varistor absorbs external surges and an operation indicator allows monitoring of operation.
The SSRs in this line are hockey-puck type.
Key features:
All models have the same compact size, thus offering the same mounting pitch.
Built-in varistor effectively absorbs any external voltage transistors.
LED operation indicator light.
Protective cover for added safety.
UL, CSA and TÜV certified.
Relay can be mounted on DIN rail via mounting plate rapido. To mount the relay on the
DIN rail, first install it on the mounting plate rapido via the spring. When a relay is mounted on a DIN rail, please observe the ratings for relays without a heat sink.
Safety precautions
Since this is an electrical equipment we urge special care in its use.
Contact with the section under charge could in some cases cause minor electric shock. Do not touch the terminal part of the G3NB SSR (the undercharged section) when power is present. Be sure to install the cover before use.
Since the G3NB SSR and the heat sink (if any) get hot, it may cause minor burns in some cases. Do not touch the G3NB SSR or heatsink when power is on or immediately after power is off.
The internal absorption circuit is under charge and may cause minor electric shock in some cases. Do not touch the main circuit terminals of the G3NB SSR immediately after power off.
Make sure the power supply is disconnected during wiring, and always install the terminal cover after wiring is completed. Contact with the terminals under charge may cause minor electric shock in some cases.
Do not short the load section, as the G3NB SSR may be damaged. To avoid accidental short circuits, install a protective device, such as a quick-response fuse, on the power supply line.
