Small cable chain with inner height of 10 mm and small pitch.
Radius of curvature R: 18 mm
Inner width: 10 mm
Cable carrier chains for small installation space. In these cases, it is necessary to have a chain with small dimensions that nevertheless allows easy work with the cables to be installed.
This series is characterized by a compact and sturdy structure, but at the same time lightweight.
These cable chains are characterized by compact measurements in both size and weight, so they are ideal for highly dynamic applications.
The present chains have the following peculiarities:
- Snap opening in the outer side
- Attachment with 3 holes
- Modular configurable length-they can be shortened or lengthened by removing or adding links
- Cable protection given by smooth finish
- Sturdy
- Easy to assemble
- Small dimensions in height and pitch
- Quiet operation due to small pitch
Possible application modes
- Horizontal: applications even without support
- Vertical: suspended applications or vertical applications
- Circular movements: possible applications in rotation
Application example:
They can be used for handling harnesses in 3D printers. Indeed, these are usually characterized by small spaces for cable placement. Certainly the use of cable chains allows for a cleaner configuration of the machine, as well as providing additional protection to the cables.
In particular, this model is ideal for installation in printers Voron, including model Voron 2.4 and Voron Trident .

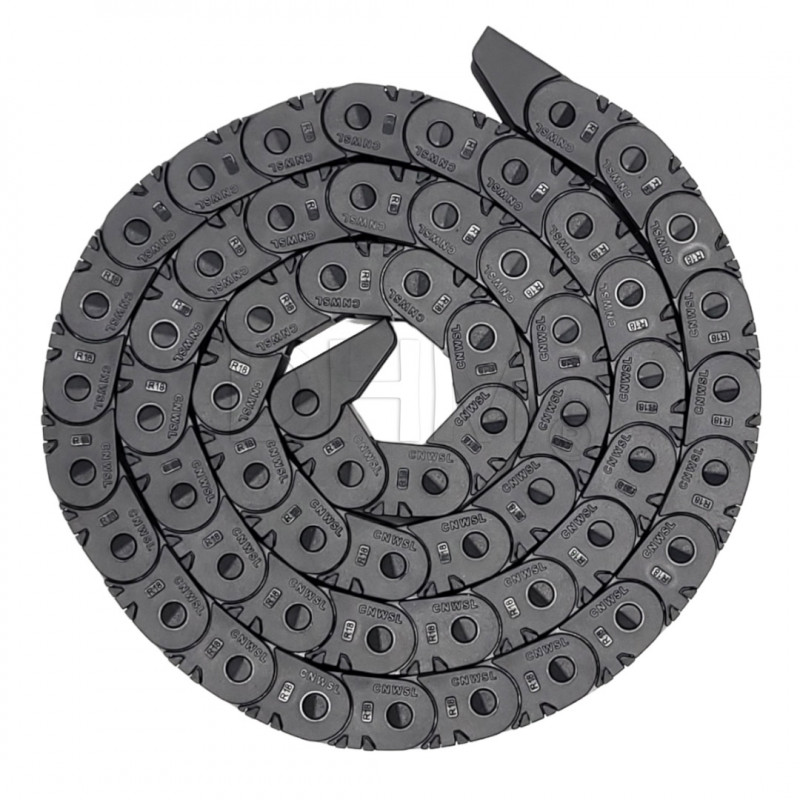

Package contains: 1 x Cable Chain 10x10 mm - length 1 meter - external snap opening
