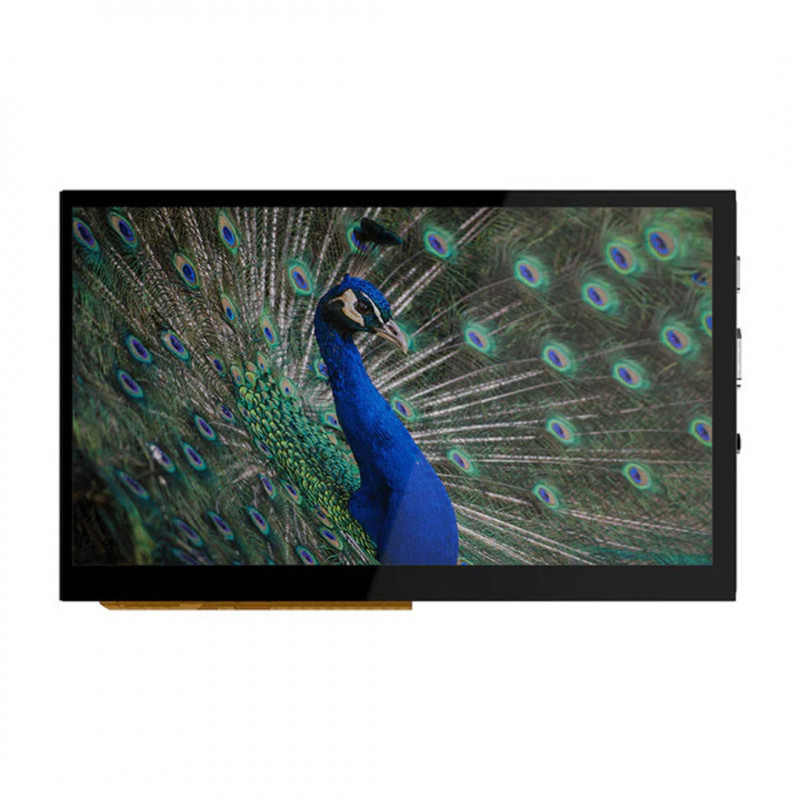

BIGTREETECH HDMI7 V1.1 - Klipper Compatible 3D Printer Screen

BIGTREETECH HDMI7 is a screen developed by BIQU's technical team specifically for 3D printer users using the Klipper system. They can work with Raspberry Pi4, Manta M8P+CB1, Manta M4P+CB1 and other mini PCs.

Key features:

• Optional HD IPS screen. The resolution of the 7-inch screen is 1024x600. IPS capacitive touch screen supports 5-point touch.
• Plug and Play. Just connect with HDMI port and power via USB C port to operate the screen. No additional driver is required. This screen is ideal for 3D printer users and is compatible with the Manta and CB1 series motherboard. Due to its features it adds a smoother visual experience to the printer.
• Adjustable brightness and viewing direction. Brightness is adjustable via 3 buttons: Ks1 to increase it, Ks3 to decrease it, and Ks2 to adjust the display direction 180°.
• Audio output support. The screen has a built-in audio decoding circuit, supports audio output with 3.5 mm headphone jack. The 3.5 mm audio interface transmits the audio signal without noise and current, providing pure and delicate sound.
• 4-pin XH2.54 breakout port. The 4-pin XH2.54 breakout port allows custom connection via USB protocol as well as independent screen power supply (DC 5V).

Note
The screen has two indicator lights.

• Power indicator (red light D11): lights up when the motherboard is turned on indicating that the power supply is functioning normally.
• Operating status indicator (green light D12): flashes indicating that the screen is operating normally.

More information, firmware and instructions are available here:
https://github.com/bigtreetech/BIGTREETECH-TouchScreenHardware/tree/master/BTT%20HDMI7

Package contains: 1 x BIGTREETECH HDMI7 V1.1
