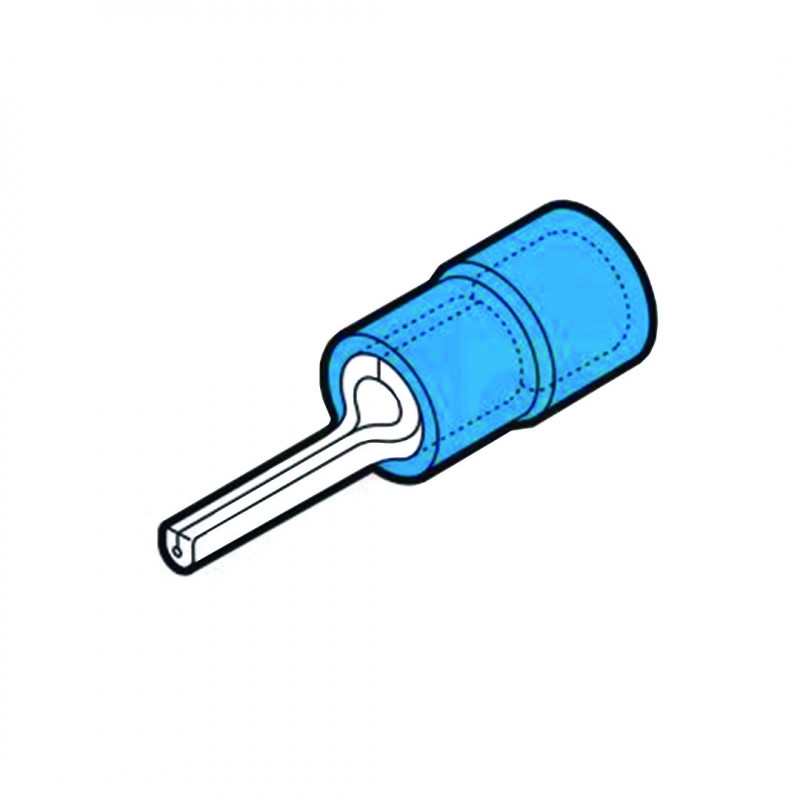

Package Contains: 1 x BF-P12 - BLUE ROUND POINT CABLE LEAD P 12mm
F-series cable lugs are made from ETP copper strip, annealed and surface protected by electrolytic tinning.
The annealing process optimizes the structural characteristics of the material, thus allowing easier compression and ensuring that the lug can be used under a variety of mechanical stresses. Internal knurling of the collar improves contact with the conductor by increasing tensile strength.
The F series offers clear advantages: the special internal shaping of the insulating jacket, which is funnel-shaped, is designed in such a way as to connect the step represented by the collar of the lug and thus allow an ?easy? introduction of the conductor. It is therefore no longer necessary to intervene on the conductor to recompact its elementary wires, which generally tend to stretch after removing the insulation; this translates into savings in wiring time. The entire conductor section is affected by compression thus realizing a reliable connection both electrically and mechanically.
Technical data
The lugs are made of Cu-ETP CWOO4A electrolytic copper according to UNI EN 13599, are annealed and surface protected by electrolytic tinning, min. thickness 3µm.
Main characteristics of PVC insulating sleeves:
DIELECTRIC RIGIDITY (KV/mm): >35
SPECIFIC VOLUME RESISTANCE (?/cm): >1015
TEMP. MAXIMUM OPERATING TEMPERATURE (°C): 80
FLAMMABILITY? (UL-94): V0
DENSITY? (g/cm3): 1.4
ABSORPTION OF H2O (%): 0.1÷0.6
RESISTANCE TO BREAKAGE (N/mm2): 45÷50
Connectors can be stored at a minimum temperature of not less than - 40°C.
