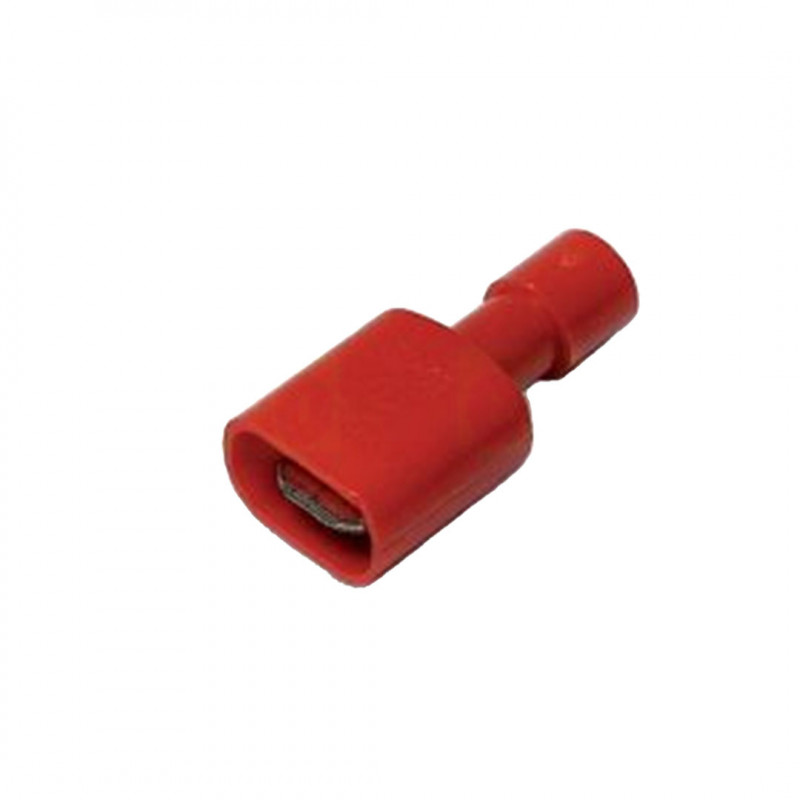

Package contains: 1 x RF-M608P - RED 6.34X0.8
MALE PLUG-IN CONNECTOR FOR COPPER CABLES, totally pre-insulated in PC - partially reinforced with copper sleeve
The PC pre-insulated plug-in connectors are designed to meet the market's increasingly stringent requirements for reliability and safety of electrical connection components.
The PC preinsulated plug-in connectors have an insulating jacket made of Polycarbonate, a halogen-free thermoplastic characterized, among other things, by a special molecular structure that gives it greater toughness than PVC and PA6.6.
Technical data:
The connectors are made of brass P-Cu Zn 30 UNI EN 1652
(corresponding to: Cu Zn 30 DIN 17660/1974 ; Cu Zn 30 NF A51-101/1977) and comply with IEC 61210
The reinforcing tube is made of Copper SF Cu DIN 1787/1973, F25
The insulating sleeves, on the other hand, are made of PC (PC10500AC) , a halogen-free material characterized by high toughness:
RIGIDITY? DIELECTRIC (KV/mm): >30
SPECIFIC VOLUME RESISTANCE (?/cm): >1016
TEMP. MAXIMUM OPERATING TEMPERATURE (°C): 115÷130
FLAMMABILITY? (UL-94): V0
DENSITY? (g/cm3): 1.2
ABSORPTION OF H2O (%): 0.15
RESISTANCE TO BREAKAGE (N/mm2): >65
