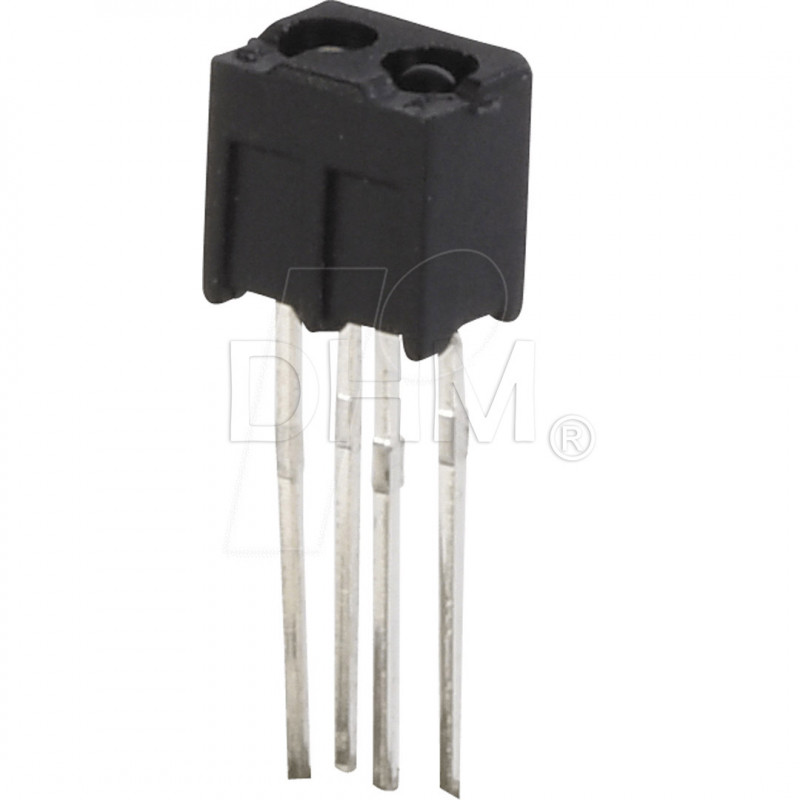

ITR 20001/T THD Reflex Coupler - EVERLIGHT

TheITR20001/T Opto Switch is a highly reliable and sensitive device designed for applications requiring fast and accurate detection. This optical switch consists of an infrared (IR) emitting diode and an NPN silicon phototransistor, housed side by side on a converging optical axis within a black thermoplastic housing.

Key Features:

• Response time rapido: Ensures fast and accurate operation.
• High analyticity : Excellent signal detection capability.
• High sensitivity: For accurate detection even in low light conditions.
• Visible cut-off wavelength λP: 940 nm.
• Lead Free (Pb Free): Complies with environmental regulations.
• RoHS Compliance: The product complies with RoHS directives for the reduction of hazardous substances.
• Manufacturer: EVERLIGHT

Detailed description:
The ITR20001/T combines an infrared-emitting diode and an NPN silicon phototransistor in one compact housing. The phototransistor exclusively receives infrared radiation from the diode. Under normal conditions, the phototransistor detects only the emitted IR radiation. However, when a reflective object approaches the ITR20001/T, the phototransistor detects the reflected radiation. For more information on components, refer to IR2424-3C and PT2424-6B.

Applications:

• Mouse: Used in pointing devices for motion detection.
• Switch scanner: For detecting the position and status of switches.
• Driver Of floppy disk: Employed in the management and reading of floppy disks.
• Non-contact switching: Suitable for switching systems without physical contact.
• Direct Board: Designed for direct integration on printed circuit boards.

Note: To ensure the best performance, ensure that the ITR20001/T is used in accordance with the manufacturer's technical specifications and recommendations.

Package Contains: 1 x ITR 20001/T THD Reflex Coupler - EVERLIGHT
