DDX v3 extruder adapter set for Creality CR-10 v2 and CR-10 v3.
Key features:
- Compatible with DDX v3, now even easier to install
- Mounting a Direct Drive extruder to CR-10 v2 and CR-10 v3
- Plastic parts made of PA12 (Nylon) using the SLS 3D printing process
- Improved surface finish and higher operating temperature resistance
- Improved support for bowden and Z-axis end switch
Compatibility with CR-10S V2 and CR-10 v3
To use this adapter set on the above printer models, the default DDX V3 configuration is sufficient: Bondtech DDX V3 Direct Drive eXtruder for Creality.
All adapters for hotend and DDX printbed leveling sensors are compatible with this configuration. Keep in mind that for the printbed leveling sensor, using one of the adapters will change the position of the probe. A firmware modification may be required.
To use the DDX V3 on the CR-10 v2 or v3 requires an update ofhotend.
Available options are:
- Copperhead
- Mosquito
- Mosquito Magnum
- Micro Swiss All Metal.
Install thehotend and adapter hotend inside the DDX V3 before attaching the DDX mounting plate.
Note: To install the fan cover on the DDX V3 and after leveling it, be sure to tighten the screw firmly so that the fan cover is secure.

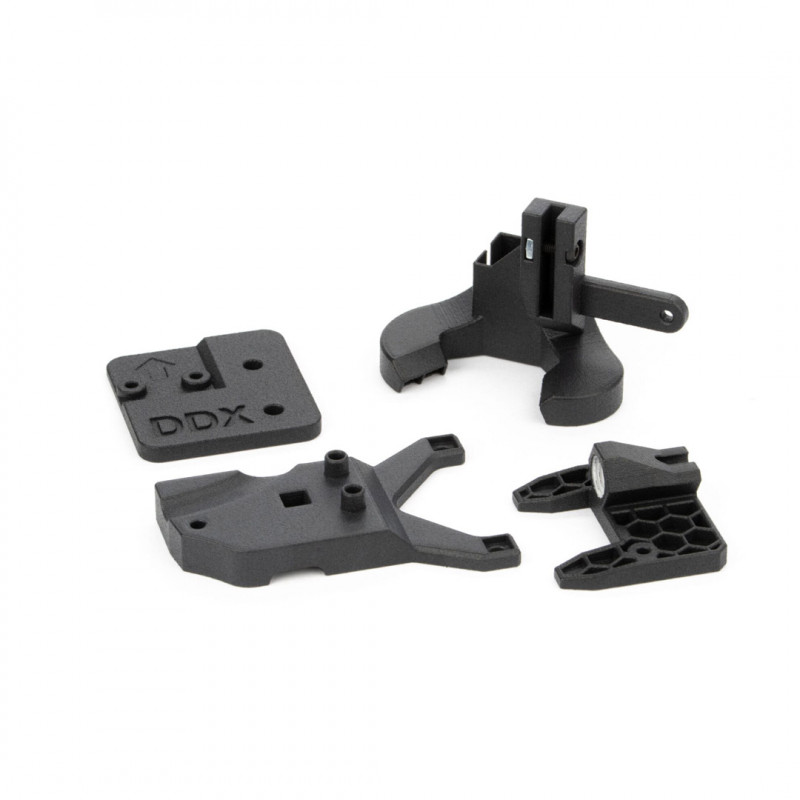

Package contains:
1 x 10079-5-T DDX 5015 Fan Shroud
1 x 10079-65 DDX mounting plate for CR-10 v2
1 x 10079-45 Holder Bowden DDX (supplied with a tapered thread to better fit the stock metal threaded mount)
1 x 10079-80 DDX Z sensor plate for CR-10 v2
7 x M3 square nuts
2 x M3x25 screws
2 x M3x20 screws
1 x Screw M3x10
1 x Screw M3x8
