Compatibility with more hotend
This model was created to be compatible with the originalhotend of every compatible Creality model except thehotend of CR-10 V2/V3. Users can upgrade thehotend to Copperhead™ or Mosquito™. It is also compatible with users of hotend Micro Swiss. To upgrade thehotend, a specific adapter set is required.
The Bondtech DDX Direct Drive extruder for 3D printers Creality is an upgrade kit that replaces the original bowden extruder with a direct drive extruder. It is a high-performance Dual Drive extruder based on the BMG Bondtech Mini Geared.
A DDX v3 adapter set is required to use this product.
The DDX v3 is much easier to install.
Thanks to the integrated fan cover and fan mount, the DDX v3 is even easier to install. In fact, the fan can be attached to the cover without the use of screws. The height of the cover can be adjusted with a front access screw.
Using a print bed leveling sensor
The DDX is designed to leave room for the print bed leveling sensor to be attached to the X carriage. In models where space is not available to attach a probe, such as the BL Touch, to the X carriage, a holder can be printed to attach to the right side of the DDX.

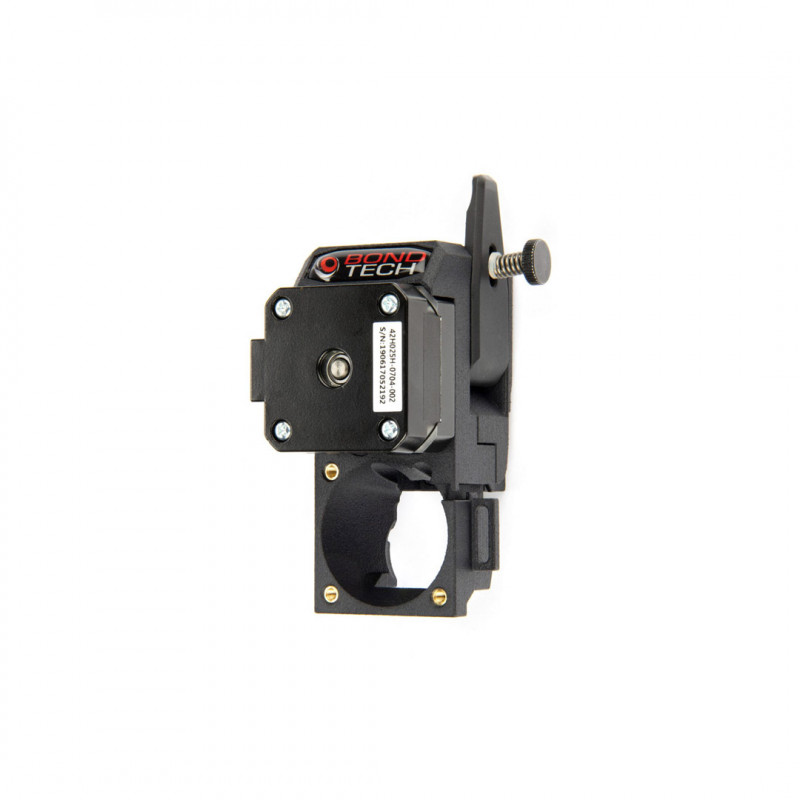

Direct-drive extruder Bondtech DDX v3
This Direct Drive extruder from Bondtech is a high-performance, high-reliability 1.75 mm Dual Drive extruder for 3D printers Creality, based on the BMG. Dual-Drive technology from Bondtech, combined with the standardhotend or, for even better performance, the industry-leading hotend Copperhead or Mosquito from Slice Engineering, provides a direct-drive extruder with trouble-free material feed and allows a wider range of materials to be used. The housing parts are molded from PA12 (polyamide) for maximum strength and precision using industrial-grade SLS technology.
Improve your 3D printer
The eXtruder Bondtech DDX v3 Direct Drive for Creality is designed to give the user more options-different materials, higher flow and/or larger nozzles, thinner layers-and achieve superior print quality. The housing design of the DDX v3 ensures effective cooling of thehot-end. Thanks to the 3:1 transmission ratio, you can achieve high resolution prints with small nozzles or high flow prints with larger nozzles.
Easy to install
For easy installation, the kit is attached to the cart with only 2 screws.
It is compatible with the following models:
- Ender-3
- Ender-3 v2
- Ender-3 Pro
- Ender-5
- Ender-5 Pro
- Ender-5 Plus*
- Ender-6
- CR-10
- CR-10 (Mini)
- CR-10S
- CR-10 S4
- CR-10 S5
- CR-10 v2
- CR-10 v3
- CR-10S Pro
- CR-10S Pro v2
- CR-10 Max*
*Note:
- On the Ender-5 Plus printer, the DDX fan cover collides with the right rail if no modification is made to the unit. To solve this problem, we sell the SLS DDX bedstead support set for Ender-5 Plus and alternatively provide the file STL of the new Z-rod support that can solve the problem. Download the file from the list here: https://www.bondtech.se/customer-service/faq/?accordion=1#tab_stl-models
- On the Cr-10 Max printer, the z-height will be limited to between 430 and 455 mm, instead of the original 470. This is due to the higher position of the push-fit on our extruder, which forces the bowden to bend at a lower level below the top bar. Use the Z(height) parameter in Machine Settings in the slicer to reflect this lower limit. Select the lowest value and adjust the maximum Z with trials.
Find the step-by-step DDX guides by clicking here: https://support.bondtech.se/c/DDX_for_Creality.html
Package contains:
1 x DDX v3 extruder
1 x Nema17 Pancake stepper motor
1 x thumbscrew
1 x 70 cm stepper motor extension cable
1 x 60 cm PTFE tube
1 x 7 cm tube Capricorn
4 x cable ties
3 x M3x12 mm screws
2 x M3x20mm screws
1 x M3x10mm screw with domed head
