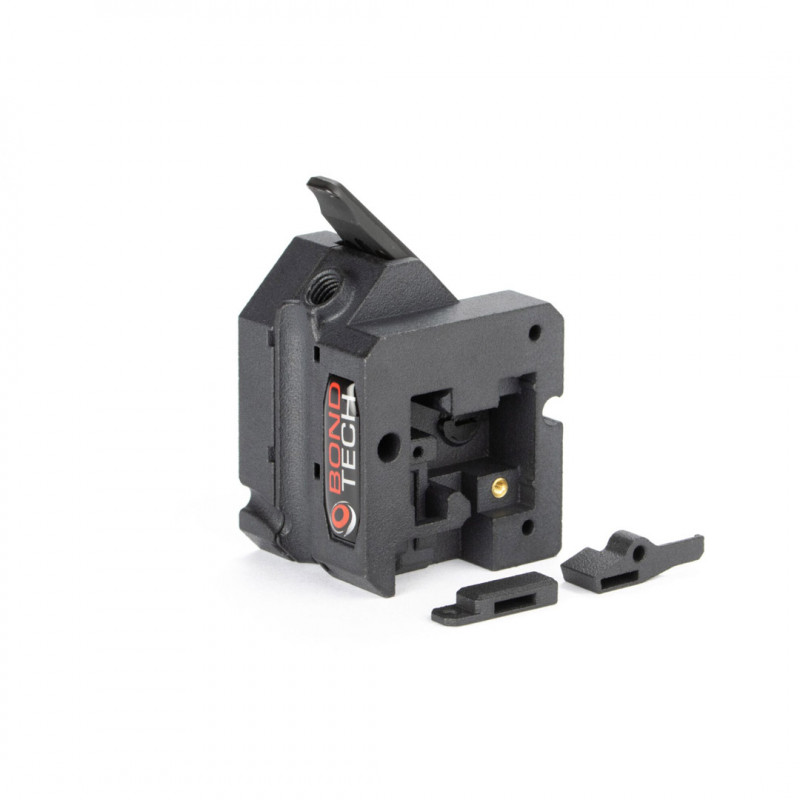

Dual Drive extruder upgrade for Prusa Mini: The Bondtech Dual Drive IFS extruder is a further development of the high resolution extruder upgrade for Prusa Mini.
Compatible with filament sensor
The IFS extruder enables integration of the new filament sensor into the extruder housing on Prusa Mini/+. If necessary, the IFS extruder can also be used without the filament sensor. To subsequently install the filament sensor in the IFS extruder, only a short assembly is required.
Hardened transmission gears for processing abrasive materials
Hardened drive gears allow the use of abrasive materials that would otherwise wear out the original feeder gears.
Adjustable tension
The screw tensioner allows the user to precisely adjust the pressure exerted on the filament by the transmission gears. This gives you the ability to tailor the settings to your preferences and optimize them for the type of material being used.
Release rapido
To be able to change materials in a very short time, simply operate the release lever rapido to release the tension and pull the material to be changed out of the extruder, keep it activated and insert the new material.
Wide range of materials
Double drive gears made of hardened steel allow working with common and abrasive materials.
Advantages
- - Compatible with filament sensor
- - Hardened transmission gears
- - Adjustable tension
- - Wide range of materials
- - Bondtech Internal Filament Sensor Extruder
Package contains:
1x Bondtech IFS extruder for Prusa Mini
1x 10076-4 IFS magnetic holder (PA12) 1x 10076-5 IFS lever (PA12)
1x 15112 plug for IFS extruder (HT-PLA)
3x black nylon cable ties
4x M3x35 screws in burnished steel
1x M3x12 screw in burnished steel
1x brass motor gear
1x knurled screws
Please note, the following components are NOT included:
- - Prusa filament sensor
- - Filament sensor magnets
- - Steel sphere of the filament sensor
