Aluminum back plate for low motor mount for VzBot Vz-HextrudrORT VzBoT 19750015 F3D-Racing UG

Add to Compare

Product Sheet

Please login to Download PDF

Add to Project

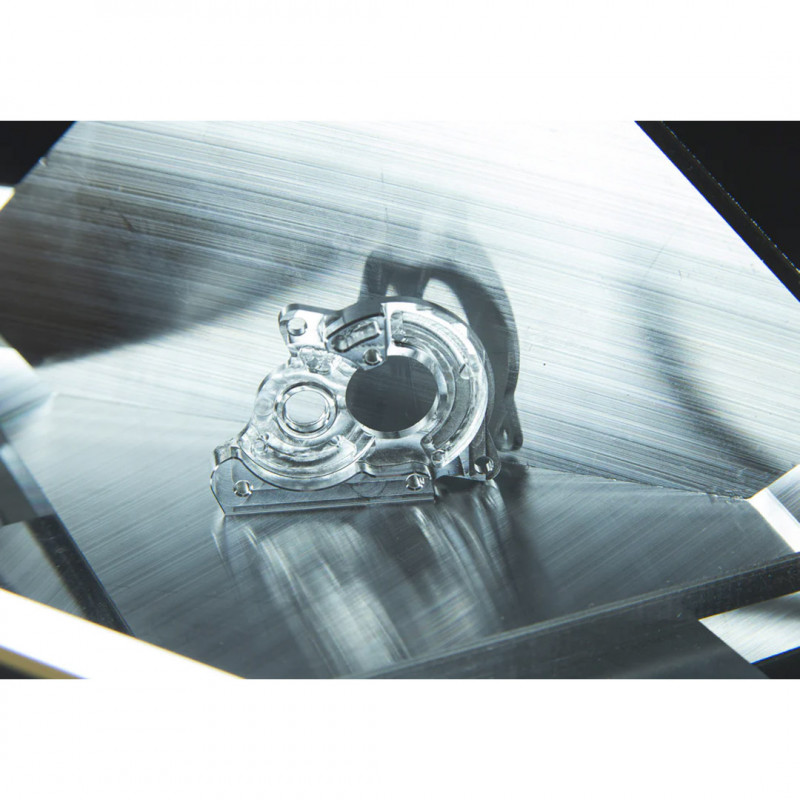

Aluminum back plate for low motor mount for VzBot Vz-HextrudrORT

Name: Aluminum back plate for low motor mount for VzBot Vz-HextrudrORT
Brand: F3D-Racing UG
SKU: 19750015
Price: 25.52 EUR
Availability: InStock

Reference: 19750015

€25.52

VAT included Shipping excluded

Immediate Availability

Dispatch in 24/48H

Product Details
Brand F3D-Racing UG
Reference 19750015
-- Stocks: Immediate Availability *

*Regular shipments throughout Europe
Description
CNC-milled aluminum component. It is used to replace the low back plate of the motor mount molded from the STL file (VZBOT Github).

CNC machined in Germany from AlMg4.5Mn aluminum plates, characterized by large uniform thermal expansion.

This part serves as a "heatsink" instead of the plastic back plate, as the motor gets quite hot (60-70C°).

F3D tested several bearings of the BMG extruder gear set; some have minimal backlash, but that is not a problem.

What is VzBoT?

VzBoT is a high-speed, moderate-sized 3d printer. Based on the TronXY XS5(A) frame CoreXY, but easily adaptable to other 2020 aluminum extrusion frames.

Since then, the VzBoT project has evolved with CNC-milled aluminum structural components and a custom high-performance hotend. The pace of development of the VzBot project has been lightning fast, and it is now one of the fastest FDM 3D printers around.

Package contains: 1 x Vz-HextrudrORT Aluminum Back plate low Motor mount - F3D

Note: Parts may have small scratches from handling
Read more
You can find more information here: github.com/VzBot3D
Take advantage of the VzBot channel on Discord for support of community: discord.gg/VzBoT
To find out more about the VzBot project: youtube.com/c/Vez3D

For more information please contact us.

The item you receive may differ in some features from the one depicted in the photo, depending on the production batch. Despite this, the functionality is maintained.
