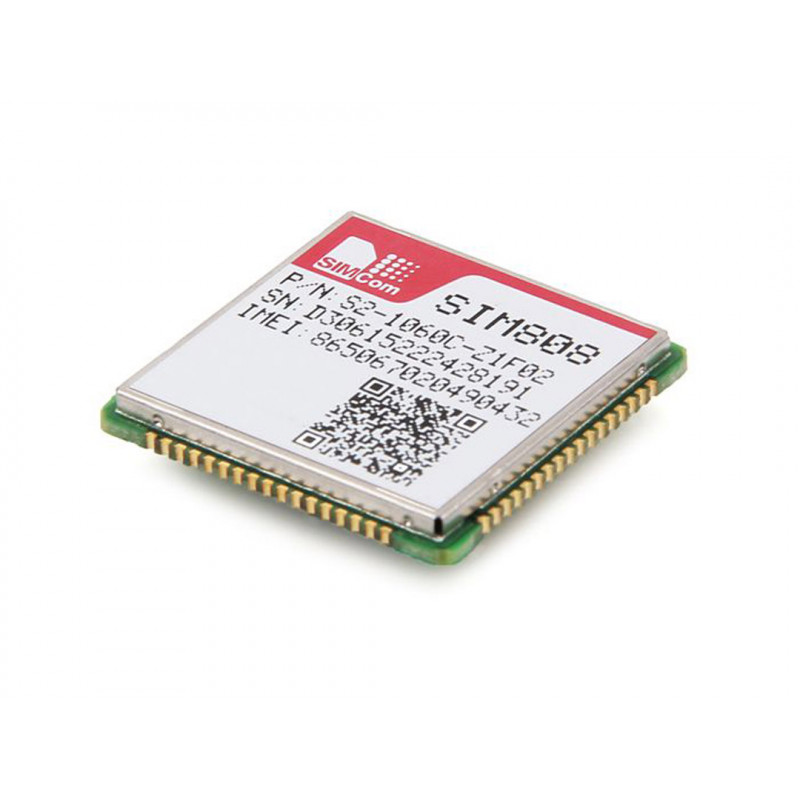

SIM808 module is a complete Quad-Band GSM/GPRS module which combines GPS technology for satellite navigation. The compact design which integrated GPRS and GPS in a SMT package will significantly save both time and costs for customers to develop GPS enabled applications. Featuring an industry-standard interface and GPS function, it allows variable assets to be tracked seamlessly at any location and anytime with signal coverage.
Features:
General Features
Quad-band 850/900/1800/1900MHz
GPRS multi-slot class 12/10
GPRS mobile station class B
Compliant to GSM phase 2/2+
Class 4 (2 W @ 850/900MHz)
Class 1 (1 W @ 1800/1900MHz)
Bluetooth: compliant with 3.0+EDR
Dimensions: 24*24*2.6mm
Weight: 3.3g
Control via AT commands (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands)
Supply voltage range 3.4 ~ 4.4V
Low power consumption
Operation temperature:-40? ~85?
GPS Specifics
GPS Receiver channels: 22 tracking / 66 acquisition
Coarse/Acquisition code: GPS L1
Tracking sensitivity: -165dBm
Time-To-First-Fix: Cold starts: 30s (typ.), Hot starts: 1s (typ.), Warm starts: 28s (typ.)
Horizontal position accuracy: < 2.5m CEP
Update rate: 5Hz
Part List:
1 x SIM808 GSM/GPRS + GPS Module
Datasheet
SIM808 Specification.pdf
SIM808 Hardware Design V1.02.pdf
SIM800 AT Command Manual V1.02.pdf
SIM800 Series_GNSS_Application Note V1.00.pdf
SIM800 E-mail Support Specifics.pdf
SIM800 IP(FTP&HTTP) Support Specifics.pdf
SIM800 MMS Support Specifis.pdf
