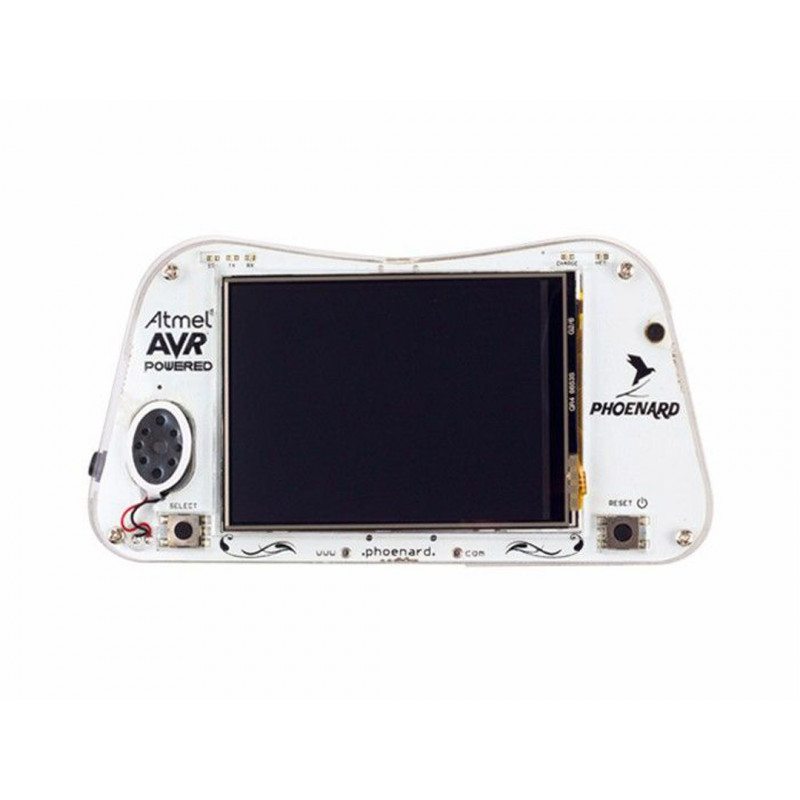

Phoenard is a programmable controller and development board with full Arduino programming support. Use the Phoenard to control robots, machines, lights, wearables and more, making use of the onboard wireless communication (GSM, WiFi, Bluetooth) and motion sensors.
The 16-bit color LCD touchscreen can be used to display user interfaces, for which we provide a full-fledged Arduino library. Display and control buttons, sliders, gauges, graphs and more with very little programming experience required. Design your own widgets and visuals for experienced users. Build interactive solutions to everyday projects!
Multiple Arduino programs, called sketches, can be stored on the Micro-SD card of the device. The installed on-board software and firmware enables multi-sketch operation. Switch between all your sketches in the home menu while away from the computer.
Your electronics projects can be docked to the bottom 30-pin connector, which exposes basic design needs such as digital pins, 6 analog input pins, 3v3 power and I2C/SPI/Serial digital interfaces. The connector doubles as a standard docking connector providing audio to the right pins, allowing the device to play music when docked on a docking music station.
Features
Arduino programming support with provided libraries
atmega2560 processor, similar to the Arduino Mega
Battery-powered with on-board usb charging
Micro-SD for local storage, audio, images and programs
Full-color 320x240 LCD screen
WiFi and Bluetooth connectivity
GSM and GPRS mobile networking with sim-card
GPS position tracking support
Accelerometer, gyrometer, barometer and temperature sensors
Audio player for playing audio (from Micro-SD) and MIDI
30-pin connector for connecting external electronics
Specification
Safe operating conditions
? Temperature: -10 ~ 60 degrees celcius
? Humidity: 20% - 90%
Power
? Battery: 1050 mAh Li-Ion
? Charging: 5V 0.5A USB
? Main board voltage: 3v3
Processor and memory
? Name: AVR Atmega2560
? Firmware: Custom firmware phoenboot
? Type: Single-core 8-bit RISC
? Speed: 16 Mhz
? Flash memory: 256Kb
? RAM: 8Kb
? EEPROM: 4Kb
? Interfaces: Serial UART, I2C, SPI
? External SPI-RAM: 32Kb
? Micro-SD: FAT16 and FAT32 ready
Screen
? Name: ILI9325
? Size: 2.8 inch
? Resolution: 320x240 pixels
? Color: 16-bit color
? Interface: 8-bit parallel bus interface
? Touchscreen: resistive
Wireless
? WiFi: ESP8266 module
? Bluetooth: HM-11 module
? SIM908 module: GSM, GPRS and GPS in one package
? Sim card: standard size
Sensors
? MPU6050: 3-axis accelerometer and gyro
? HMC5883l: 3-axis magnetometer
? BMP180: barometer and temperature
? SELECT button: tactile input
Media controller
? Name: VS1053b
? Media: MP3/ACC/AAC+/WAV/AMR/MIDI
? Control: SPI (Audio) and Serial (MIDI only)
? Output: 3.5mm Audio jack and bottom connector
Documents
A starters guide together with documentation and software examples is available on our website:
Getting started
Software documentation
