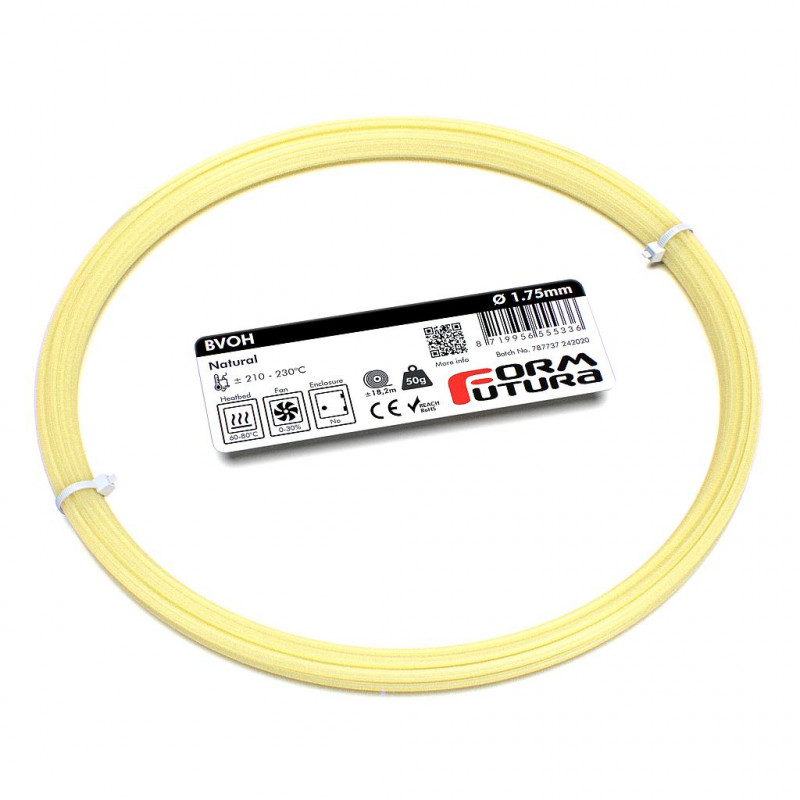

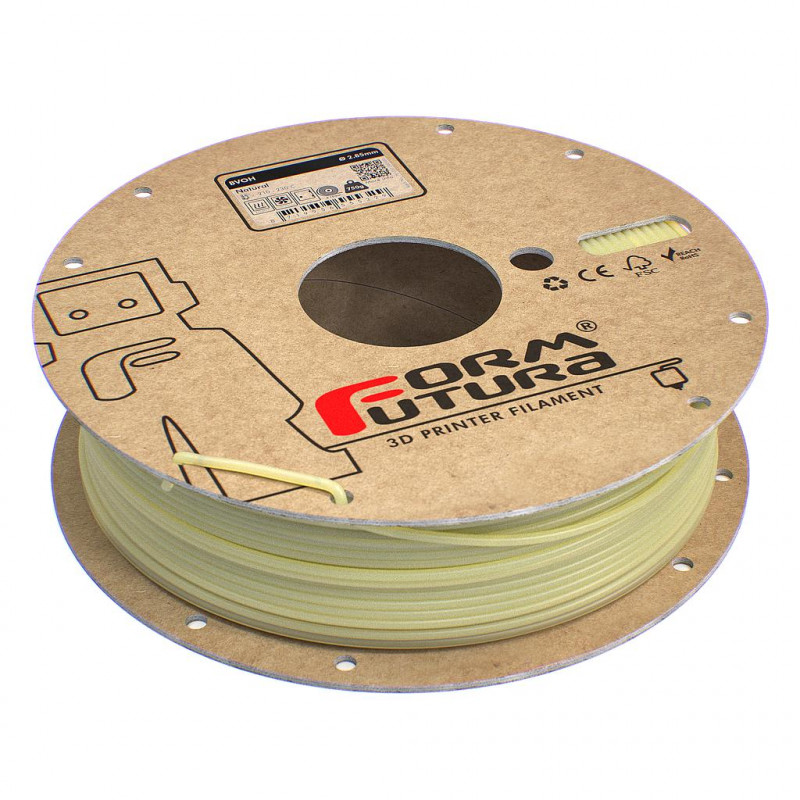

FormFutura's BVOH - Butenediol Vinyl Alcohol Co-polymer - 3D printer filament is an advanced water-soluble support material for complex multi-extrusion 3D printing. BVOH bonds to nearly all 'build materials' and it dissolves in water at a faster rate than PVA support materials. Its thermal stability is optimized to eliminate any risk of your hot-end clogging up by thermal degradation.
Key features
Good bonding with nearly all 'build materials'
Excellent solubility in water
Resistant to thermal degradation through optimized melt flow properties
Eco-friendly
Waste can be disposed of by flushing it (with water) through any regular household drain
Applications
Reliable multi-extrusion 3D printing of complex structures that require a water-soluble support material
3D printing geometries with large overhangs or complex hollow structures
PVA molds
General guidelines for 3D printing with support materials like PVA and BVOH
Printing with support materials, in general, isn?t plug and play and does require a fair amount of 3D printing expertise as there isn?t a generic one-size-fits-all setting for multi extrusion 3D printing with PVA and/or BVOH filaments. The optimal 3D printing settings for support PVA and BVOH filaments can even vary between the same models of 3D printers.
One of the most common challenges is to establish a good bond between the PVA and/or BVOH support material and the primary build material. Below parameters are of utmost importance to establish good bonding between the 3D printing materials.
Verify the extrusion distance between the printed object and the support material.
Typically the default setting in most slicer software is set at an extrusion distance of 0.1 - 0.2mm, which is optimal for break-away support materials. For water-soluble support materials, we recommend turning this setting down to 0.0mm.
The displayed printing/nozzle temperature should be accurate.
If the temperature deviates up to or over 10°C from the intended printing temperature, this may negatively impact the flow of your support material. How big this deviation is wildly varies depending on the printer you're using.
Make sure your printer is properly leveled. Avoid height differences across the multiple nozzles.
To verify your nozzles are leveled, we recommend 3D printing a small rod (e.g. 5cm x 1cm with PLA) and switching nozzles every 1 - 2 layers to detect any imperfections in the layers.
