You can find a variety of 3-axis accelerometers on our website that can meet different scenarios and needs. This time, we bring you the industrial grade, high stability, high precision, and low power ADI ADXL series three-axis accelerometers.

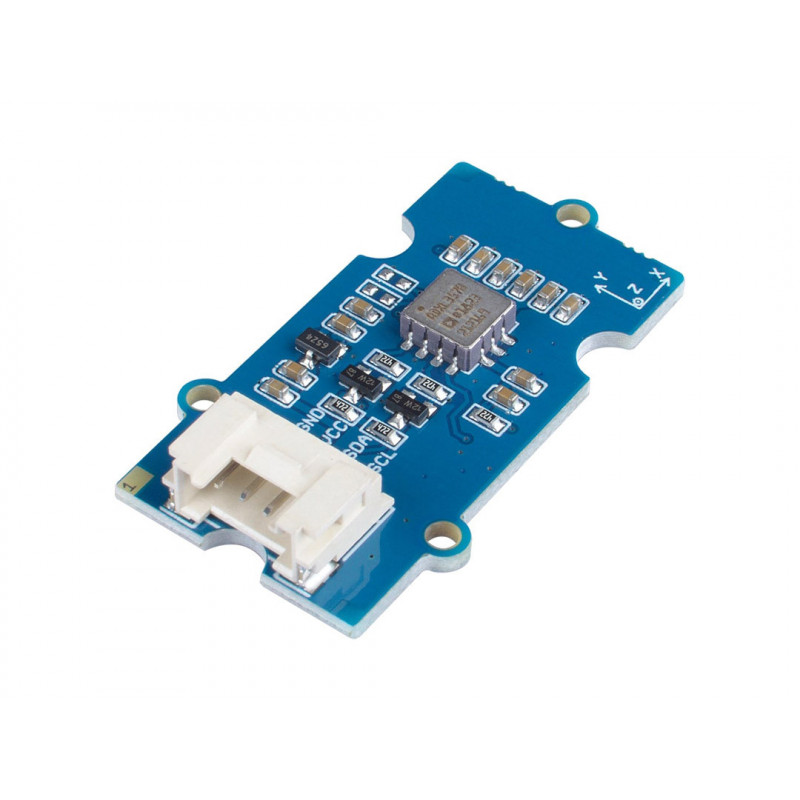

The Grove - 3-Axis Digital Accelerometer ±40g (ADXL357) is a digital output MEMS Accelerometer. This sensor has three different selectable measuring ranges and accuracies: ±10g@51200 LSB/g, ±20g@25600 LSB/g, ±40g@12800 LSB/g. You just need to do little calibration work to get a relatively accurate result. It output all the data via grove I2C port, and the I2C address is also selectable. What's more, we also provide two interrupt output pins which can be configured into 4 modes.
The ADI ADXL Series Accelerometer includes four products that will meet your different range and output needs:
Product Measurement Range Output Port Power Consumption
Grove - 3-Axis Analog Accelerometer ±20g (ADXL356B) ±10
±20g Analog measurement mode:150 ?A
standby mode:21 ?A
Grove - 3-Axis Analog Accelerometer ±40g (ADXL356C) ±10g
±40g Analog measurement mode:150 ?A
standby mode:21 ?A
Grove - 3-Axis Digital Accelerometer ±40g (ADXL357) ±10g@51200 LSB/g
±20g@25600 LSB/g
±40g@12800 LSB/g Digital I2C measurement mode:200?A
Grove - 3-Axis Digital Accelerometer ±200g (ADXL372) ±200g Digital I2C measurement mode:22?A
Grove - 3-Axis Digital Accelerometer (LIS3DHTR) ±2g,±4g
±8g,±16g Digital I2C
SPI
GPIO ADC measurement mode:150 ?A
standby mode:21 ?A
Note
This product costs only $199 during the pre-sale period(July 26, 2019 ~ August 15, 2019). After the pre-sale period, the original price will be restored to $249, besides, we offer DHL free shipping for this product all over the world.
Features
Industry leading noise, minimal offset drift over temperature, and long-term stability, enabling precision applications with minimal calibration.
Hermetic package offers excellent long-term stability 0 g offset vs. temperature (all axes): 0.75 mg/°C maximum
Ultralow noise density (all axes): 80 ?g/?Hz
Build-in 20-bit analog-to-digital converter (ADC)
Low drift, low noise, and low power
Support two channel interrupt output
Support FIFO(96*21-bit)
Applications
Inertial measurement units (IMUs)/altitude and heading reference systems (AHRSs)
Platform stabilization systems
Condition monitoring
Seismic imaging
Tilt sensing
Robotics
Pinout
