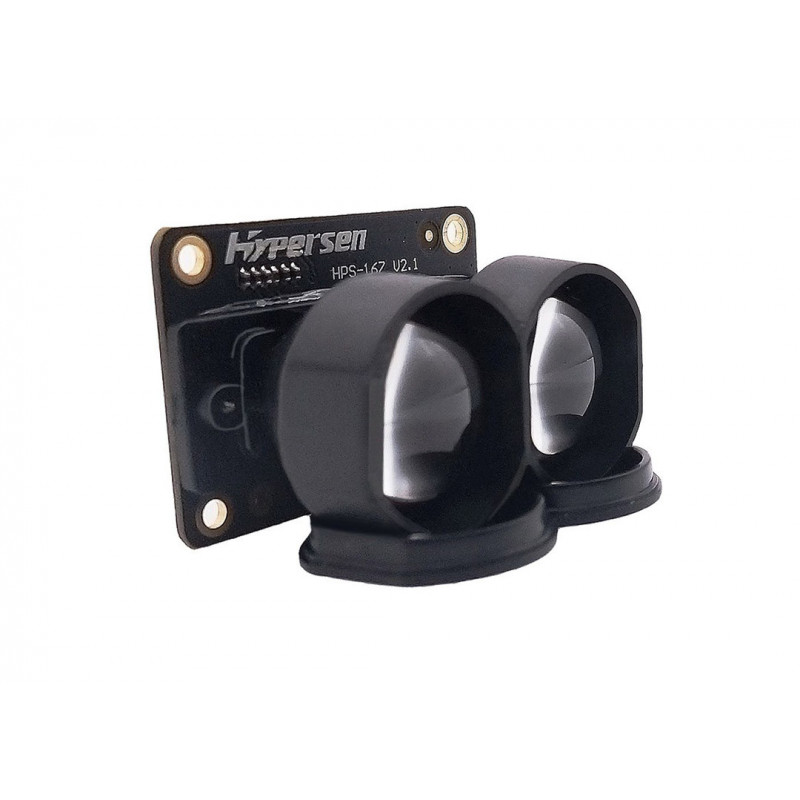

HPS-167 is an upgraded ultra-high-performance Time-of-Flight (ToF) infrared ranging sensor with newly-designed emitting & receiving optical lens, suitable for precise, long-distance measurements. It provides accurate distance measurement whatever the target color and reflectivity unlike conventional technologies. HPS-167 can measure absolute distances up to 35m on a white target, setting a new benchmark in ranging performance levels, opening the door to various new applications.
HPS-167 integrates a high-power 850nm infrared LED emitter and a high-sensitivity photodiode (PD) coupled with internal physical infrared filters, enables longer ranging distance and higher immunity to ambient light.
Advanced embedded data processing & filtering algorithm realizes extremely stable and real-time measurement outputs.
Features:
Fast, accurate distance ranging
- Measures absolute range up to 35m (white target) with accuracy indication
- Adaptive output data rate up to 54Hz
- Measuring result is not sensitive to the target color and reflectivity
- Embedded electrical & optical cross-talk compensation
- -10?~+55? temperature compensation
- Ambient light compensation enables accurate measurement in high infrared ambient light
levels
Fully integrated miniature module
- 850nm infrared LED emitter
- Emitter driver
- Integrated optimally-designed emitting & receiving optical lens
- Ranging sensor with advanced embedded micro controller
- Advanced embedded data processing & filtering algorithm
- 115200bps 3.3V UART interface
- 35(W) x 24(H) x 21.5(D) mm, 8g
Eye safety
- Compliant with latest Photobiological Safety of Lamps and Lamp Systems Standard
IEC62471(Class 0), CE, FCC, RoHS
Mechanical drawing & device pinout
Application schematic
