Note
Please be aware that this product does not support the Helium LongFi network. Kindly note that products that are free from any quality defect are not eligible for return and refund.
About SenseCAP
Among the first launch of Seeed industrial IoT (IIoT) product series, SenseCAP is focusing on wireless environmental sensing applications: smart agriculture, precision farming, and smart city, to name a few. It consists of hardware products (sensors, data-loggers & gateways, etc.), software services (SenseCAP portal, mobile App, open dashboard), and API for device & data management.
Note
Please send email to sensecap[at]seeed[dot]cc to request any technological support for this product.

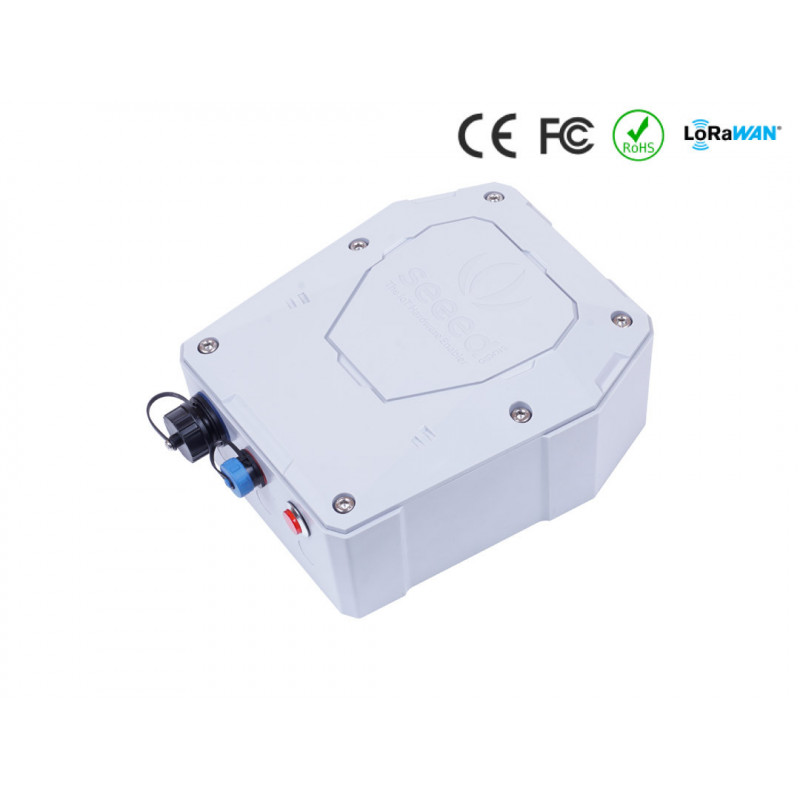

SenseCAP Gateway - LoRaWAN is based on LoRaWAN protocol, applicable for low-power consumption, long-range environmental data collection, and remote monitoring scenarios such as smart agriculture and smart city.
As the central device of SenseCAP LoRaWAN network, the gateway is used for collecting data from different SenseCAP Sensors and transmit the data to the cloud platform via cellular LTE or Ethernet. Equipped with a high-performance processor AM3358 and telecom-operator-level LoRa chip SX1301, this device ensures robustness and high performance in large-scale networks. Mutual authentication and encryption are established in the whole network to increase security.
The gateway is designed with an IP66 enclosure and supports an extended operating temperature range, making it suitable for industrial applications in both indoor and outdoor severe environments.
We offer different SenseCAP Gateway - LoRaWAN with different ISM bands:
SenseCAP Gateway - LoRawan EU 868 ( subset of 863 - 870 MHz )
SenseCAP Gateway - LoRawan US 915 ( subset of 902 - 928 MHz )
SenseCAP Gateway - LoRawan CN 470 ( subset of 470 - 510 MHz )
Note
Please choose the corresponding frequency according to regional regulation.
SenseCAP mobile APP and SenseCAP Portal are provided to enable easy and efficient provisioning and management of devices & data at scale.
SenseCAP API is provided to access data and devices for further development.
Here is a collection of SenseCAP LoRaWAN sensors for you to use with SenseCAP LoRaWAN Gateway seamlessly without extra workload for provisioning. It only takes you a few minutes to set up with this instruction.
If you want to add other LoRaWAN sensors, no problem at all. Please kindly refer to this document to connect any LoRaWAN sensors to SenseCAP LoRaWAN Gateway.
System Architecture
SenseCAP Architecture
Features
High-performance Cortex A8 1GHz processor, Linux system.
Support LoRaWAN protocol Class A, support ultra-low-power SenseCAP Sensor
Support 8 RX, 1 TX transceiver, maximum transmit power 27dBm
Support multiple ISM bands: CN470, EU868, US915
Support multiple methods to access the network: 4G, Ethernet
Ultra-wide-distance transmission: 10km in line of sight scene, 2 km in urban scene
Industrial grade protection: IP66 enclosure, temperature -40?~70?, suitable for outdoor applications
Easy deployment, and rapid provisioning (see the "how to install" video below)
Applications
Smart Agriculture
Smart Building
Environmental Monitoring
Other Wireless Sensing Applications
Specifications
General Parameters
Product Model LoRa-G-915-E/4G
CPU TI AM3358 Cortex-A8 1GHz
System Linux Debian
RAM DDR3 512MB
Memory 8GB eMMC
Channel Plan 902~928MHz
LoRa Power Output 25dBm
LoRa Sensitivity -139dBm (SF12BW125)
Ethernet 100Mbps FE (RJ-45)
4G Band
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
LTE-TDD: B38/B39/B40/B41
WCDMA: B1/B2/B4/B5/B6/B8/B19
GSM: 850/900/1800/1900MHz
4G Features
Support non-CA Cat 4 FDD and TDD
LTE-FDD: Max 150Mbps (DL), Max 50Mbps (UL)
LTE-TDD: Max 130Mbps (DL), Max 30Mbps (UL)
UMTS Features
Support 3GPP R8 DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA
DC-HSDPA: Max 42Mbps (DL) HSUPA: Max 5.76Mbps (UL)
WCDMA: Max 384Kbps (DL), Max 384Kbps (UL)
LoRa Antenna
2.5dBi gain / Vertical polarization / Omni-directional / SMA-J connector
4G Antenna
0-4dBi gain / Linear polarization / Omnidirectional / SMA-J connector
LED Indicator Indicating network condition (online/ offline)
Grounding Reserved 1 screw hole for GND
Power Consumption 3.6W
Power Supply DC 12V/2A
IP Rating IP66
UV Resistance anti-aging (from rain/sun exposure): UL746C F1
Enclosure Material PC
Operating Temperature -40 ? to +70 ?
Operating Humidity 0 to 100 %RH (non-condensing)
Installation Method Wall or pole mounting
Device Weight 777g
Device Dimensions 256mm * 160mm * 81mm
Certification CE, FCC, RoHS
Interface
Part List
Part List
1 LoRa Gateway x1
2 LoRa Antenna x1
3 4G Antenna x1
4 Allen Hex Key x1
5 Mounts x4
6 Power Adapter x1
7 Power Extension Cable (5M) x1
8 Zip Ties x2
9 M5 Self-drilling Screws x8
*Optional Antenna
1 LoRa Fiberglass Omni Antenna x1
2 Antenna Lightning Protector x1
3 LoRa Antenna Brackets x1
