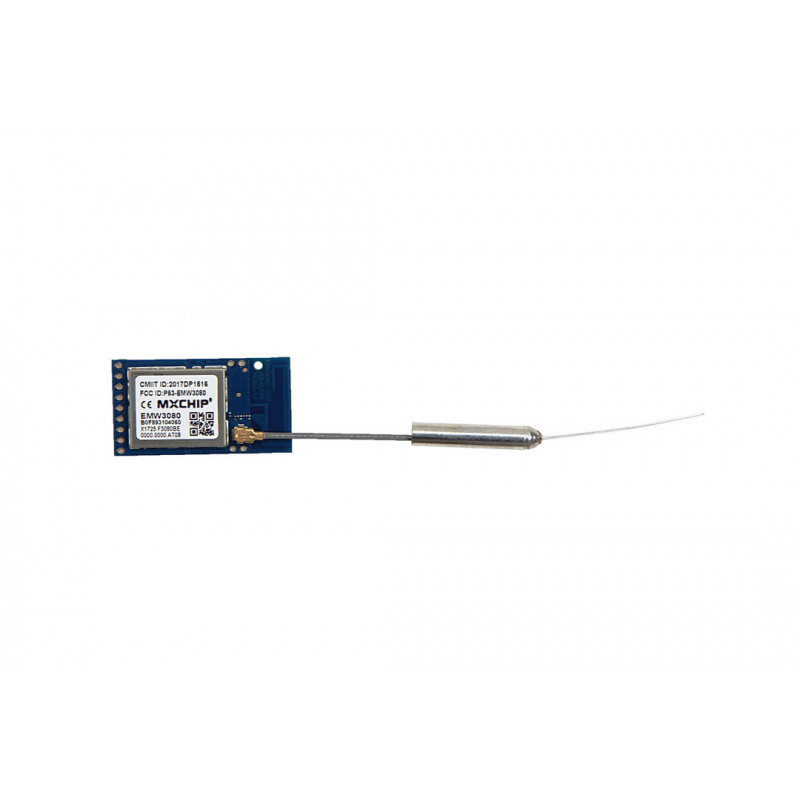

EMW3080 is a cost-effective embedded Wi-Fi module released by MXCHIP with high integrating ARM CM4F, WLAN MAC/Baseband/RF. Maximum frequency 133MHz with 256KB SRAM and 2M FLASH. Power supply is DC 3.3V. Installation modes are LGA SMT and Pin Connection. Peripheral: 2xUART / 1x SPI /2x I2C / 6x PWM / Up to 13 GPIOs. EMW3080 operates MiCO 3.0 IoT operating system, supporting Micoder 1.0 development system. Provide fast, stable and secure end-to-end cloud links to users with integrate TCP/IP protocol stack, various security encryption algorithm, intelligent cloud such as MXCHIP easylink/Alink 1.1/Joinlink 3.0/Hilink/One Net/Gome/Suning, oversea cloud such as AWS/Ayla/Azure/IBM Watson/Google/Apple Homekit. EMW3080 (B): Abundant peripherals and memory to supply most application and multi-cloud requirement.
Application scenarios
Intelligent Security
Industrial automation
Smart Home Application
Intelligent Transportation
Intelligent lighting
Features
Properties
Support 802.11b/g/n, integrate ARM-CM4F, WLAN MAC/Baseband/RF
256KB RAM/ 2MB FLASH
Working Voltage: DC 3.0-3.6V
Maximum transmission rate up to 72.2 Mbps with 20 MHz bandwidth.
Maximum transmission rate up to 150 Mbps with 40 MHz bandwidth.
EMW3080B is standard module?EMW3080A has hardware encryption. Improve the security level of Cloud connection and firmware protection. Security level in accordance with CC EAL5+ AVA_VAN5
EMW3080(A) Hardware Encryption Features
Encrypt firmware of clients to prevent cracking
Digital signature is used in firmware to ensure integrity and legality, preventing being tampering or replaced in OTA.
Automatically generate private key to save the certificate issued from the cloud, the cloud can identify the legality of the device to prevent illegal, counterfeit, non-secure accessing.
Prevent hackers to obtain sensitive data and code
Wi-Fi Features
Support 802.11b/g/n?HT-40
Support Station, Soft AP, Station+Soft AP
Support EasyLink?Alink?Joinlink
Antenna: IPX
Peripherals
2x UART
2x I2C
1x SPI
1x SWD
6x PWM
Up to 13GPIOs
Operating Temperature
-20? to +85?
