A true open hardware, BeagleBone® Series is credit-card-sized Linux computer that connects to the Internet and runs software such as Android 4.0 and Ubuntu. With plenty of I/O and processing power for real-time analysis provided by an AM335x 720MHz ARM® processor, BeagleBone® can be complemented with cape plug-in boards to augment functionality.

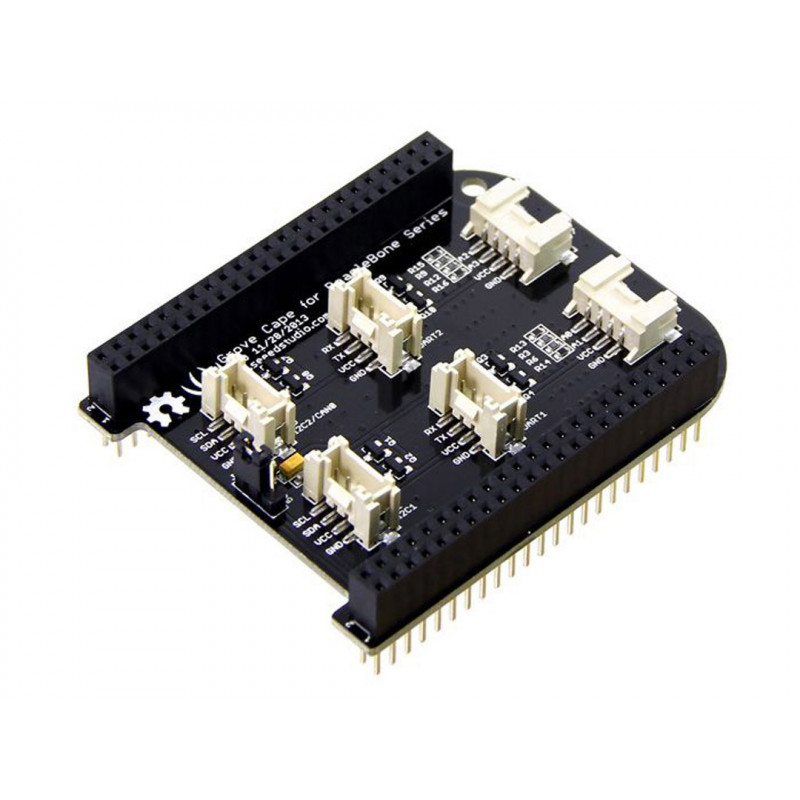

And this Grove - Grove Cape for BeagleBone® Series is an expansion board for BeagleBone® Series to work with abundant Grove resources. There are 6 ready Grove sockets on the board cevering functions like UART, I2C and ADC. And in this way, all Grove Modules are accessible for the BeagleBone® board. Wanna make some projects with BeagleBone® and need some sensors or display? This Grove - Grove Cape for BeagleBone® Series can bring you this convenience.
Specification
Voltage: 3.3~5V
Current:<0.5uA
Dimension: 69.9X54.8X17.5 mm
Digital I/o port voltage protection
Digital allows maximum input voltage 5V
Analog input by partial pressure resistance, Ratio of 1.8/5
Analog port allows maximum input voltage 5V
